Eyewash Station, Guardian G5022 deck mount, drench style with autoflow
Manufacturer: Guardian
Model: G5022
Status: New from manufacturer. Quick ship
Warranty: 2 year Manufacturer's warranty

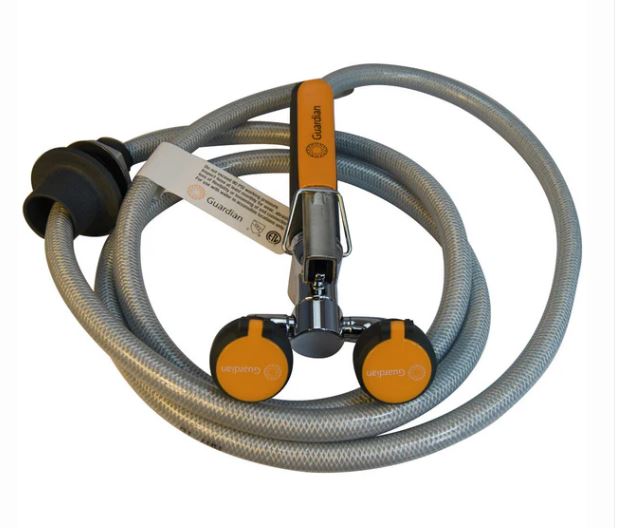

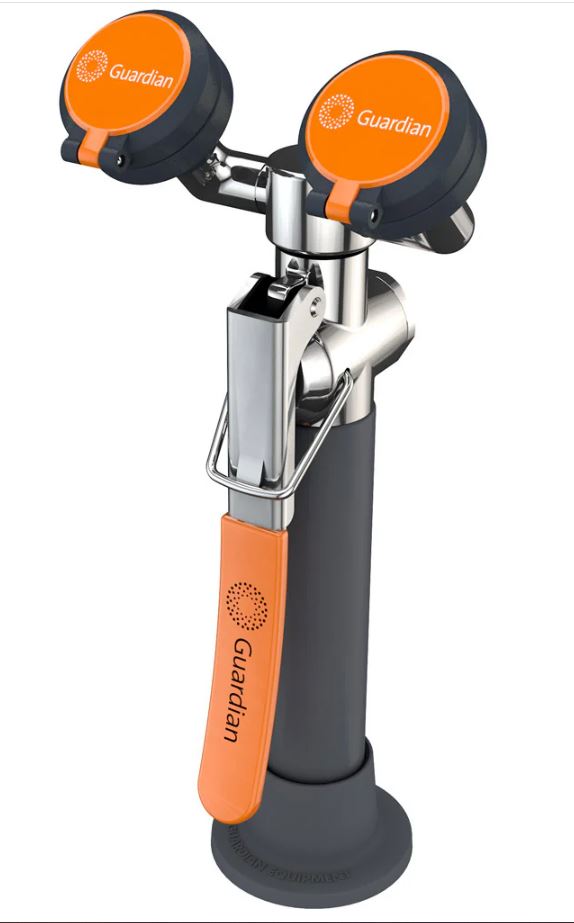

Dual purpose deck mounted eye wash/drench hose unit meets the requirements of ANSI Z358.1 as a primary eye wash. Spray assembly can be left as a fixed eye wash or it can be removed to use as a drench hose. Eliminates the need for separate eye washes and drench hoses. Never lose dust covers again! Spray head assembly has two Gentle Spray outlet heads with "flip-top" dust covers mounted on chrome plated brass supply arms. Activated by stay-open, chrome plated squeeze valve. All wearing components are accessible for ease of service. 8' reinforced PVC hose. 300 PSI hose rating. Fully factory assembled and water tested. Complete with ANSI-compliant identification sign.
Eyewash/Drench Hose Unit, Deck Mounted

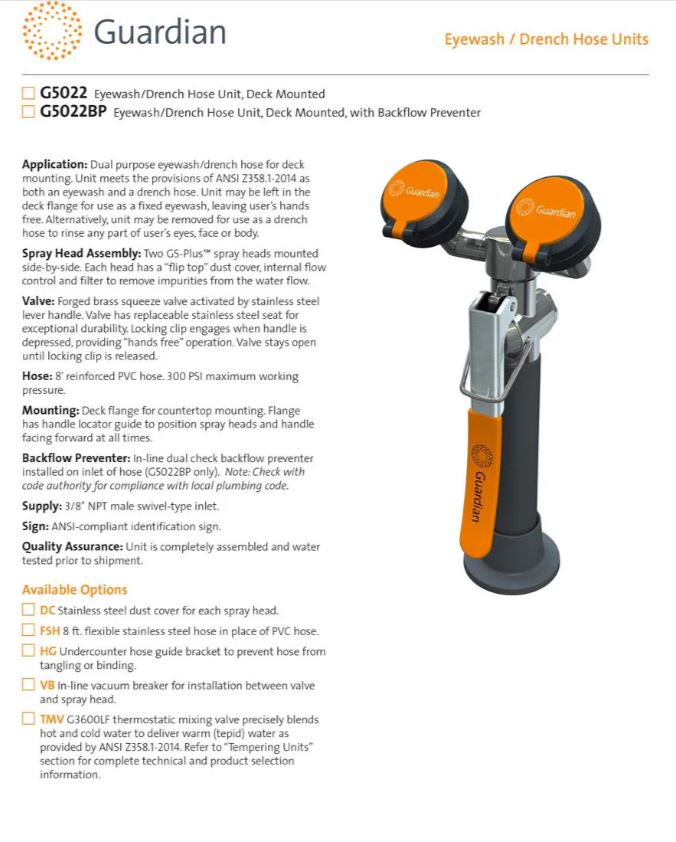

Application: Dual purpose eyewash/drench hose for deck mounting. Unit meets the provisions of ANSI Z358.1-2014 as both an eyewash and a drench hose. Unit may be left in the deck flange for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body.
Spray Head Assembly: Two GS-Plus™ spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Locking clip engages when handle is depressed, providing “hands free” operation. Valve stays open until locking clip is released.
Hose: 8’ reinforced PVC hose. 275 PSI maximum working pressure.
Mounting: Deck flange for countertop mounting. Flange has handle locator guide to position spray heads and handle facing forward at all times.
Supply: 3/8" NPT male swivel-type inlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
