Binder Model CB-S 170-UL CO2 incubator with hot air sterilization (6 cu. ft.)
Manufacturer: Binder
Model: CB-S 170-UL
Condition: Used. Excellent condition. Ships from Maryland on pallet
Warranty: 30 days
Estimated lead time: 5 business days from acceptance of order. Please contact us for availability.
Important characteristics
- Temperature range: ambient temperature plus 4 °C to 60 °C
- Humidity range: 90 to 95% RH
- CO₂ control range: 0 to 20 vol% CO₂
- Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
- Hot-air sterilizable CO₂ sensor with single-beam infrared technology
- CO₂ gas-mixing jet with Venturi effect
- Intuitive touchscreen controller
- Internal data recording, can be read out in open format via USB interface
- Optimized double-pan humidification system with condensation protection
- 170 liters of extra space in the interior while maintaining the same footprint
- Stacking height of just 1.80 m for easy use of the top unit
- Fail-safe CO₂ automatic diagnosis system for protecting the pH of cell cultures
- DuoDoor system: Unit door and glass door can be opened with one handle
- Lockable door handle
- Computer interface: Ethernet
- Zero-voltage alarm contact
- Tightly sealed inner door made of tempered safety glass
- 3 perforated shelves, stainless steel
- Units are stackable with stacking adapter
Specifications
| Designation |
CB-S 170UL |
| Recovery time after 30 seconds door open at 37 °C [min] |
6 |
| Temperature fluctuation at 37 °C [± K] |
0.1 |
| Temperature range 6 °C above ambient temperature to [°C] |
60 |
| Temperature variation at 37 °C [± K] |
0.4 |
| Humidity range [% RH] |
90 to 95 |
| CO₂ measurement |
IR |
| CO₂ range [Vol.-% CO₂] |
0 to 20 |
| CO₂ Recovery time after 30 seconds door open at 5 Vol.-% CO₂ [min] |
5 |
| Standard O2 control ranges (vol% O2) |
0.2 to 20 |
| Nominal power [kW] |
1.4 |
| Phase (Nominal voltage) |
1 |
| Power frequency [Hz] |
50/60 |
| Rated Voltage [V] |
100 to 120 |
| Unit fuse [A] |
16 |
| Inner doors |
1 |
| Unit doors |
1 |
| Interior dimensions (WxDxH) [in] |
22.06 x 19.9 x 23.64 |
| Interior volume [cu.ft.] |
6 |
| Load per rack [lbs] |
22 |
| Net weight of the unit (empty) [lbs] |
209 |
| permitted load [lbs] |
66 |

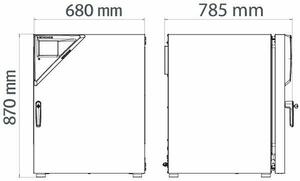

| Exterior dimensions (WxDxH) [in] |
26.79 x 28.17 x 34.28 |
| Wall clearance back [in] |
3.94 |
| Wall clearance sidewise [in] |
1.97 |
| Energy consumption at 37 °C [Wh/h] |
55 |
| Sound-pressure level [dB(A)] |
41 |
| Number of shelves (std./max.) |
3/6 |
