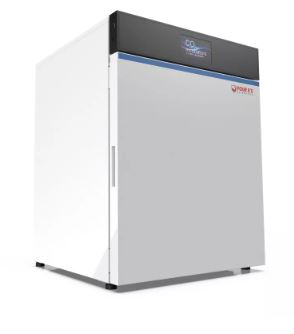

4 E's Scientific ICO170 CO2 incubator with high temp decontamination, 170 liter capacity, IR sensor, touch screen operation, and passive humidification
Warranty: 2 year Manufacturer's warranty
Status: New from Manufacturer's stock
Estimated lead time: 2-3 weeks if in stock
Price: Prices are subject to change from listed price. We endeavor to keep the listed prices updated. Customs fees are the responsibility of the customer.
A CO2 incubator is designed to create and maintain optimal conditions for cell and tissue culture. It plays a crucial role in maintaining a cell culture's sterility, temperature, humidity, and carbon dioxide levels, mimicking the physiological environment necessary for the growth and proliferation of cells.
The CO2 incubator is widely used in scientific research to grow and maintain cell cultures. Typical fields of application include tissue engineering, in vitro fertilization, neuroscience, cancer research, cell biology, microbiology and drug development.
Four E's Scientific CO2 incubator combine high capacity, PID temperature control and fast temperature and CO2 recovery (less than 5 min), providing optimal atmospheric conditions to maintain the culture's viability.
Features:
-
Six-sided heating to ensure uniform temperature and fast heating
-
Infrared CO2 sensor is high temperature-resistant and esnures accuracy
-
Heated door prevents condensation water
-
180°C high temperature dry heat sterilization
-
7-inch large touchscreen, real-time display of temperature, humidity, CO2 concentration, O2 concentration (optional), operation status bar, alarm, etc.
-
Parameter can be viewed as charts
-
The circulation fan accelerates the air circulation in the chamber so that the temperature and CO2 concentration can quickly recover to the previous level after door opening
-
Simple structure, compact, easy and quick disassembly and installation of components like shelves in the chamber
-
Equipped with HEPA filtration, highly effective filtration of microorganisms
-
Standard package is equipped with an inner door of a whole glass design and 3 shelves
-
Stainless steel mirror inner chamber with rounded angle design makes it easy to clean
-
Multiple alarms for safe operation: CO2 concentration alarm, high & low temperature alarm, door-open alarm, O2 concentration alarm (optional), humidity alarm, low water level alarm (optional)
-
The gas inlet outside the chamber has an easy-to-replace filter to filter the gas before entering the chamber
-
The temperature is PID-controlled
|
Model
|
ICO170 (Standard)
|
|
Heating Method
|
Direct heat + Air jacket
|
|
Capacity
|
170L
|
|
Input Voltage
|
110V/220V 50/60HZ
|
|
Power (standard configuration)
|
＜60W/H (37℃)
|
|
Power (high temperature sterilization)
|
＜1500W/H (180℃)
|
|
Convection
|
Fan
|
|
Heat Insulation
|
Foam
|
|
Display
|
7-inch touchscreen
|
|
Disinfect
|
180°C high temperature disinfection (HTD)
|
|
Chamber Humidity
|
Max. 97%RH
|
|
Inner door material
|
Tempered glass
|
|
Access port (for cables etc.)
|
Inner diameter 30mm |
| Chamber material |
304 Stainless Steel |
| Door |
Unsegmented inner door |
| Humidification |
Active humidification with external humidity reservoir |
|
Noise
|
< 50dB
|
|
Alarm
|
CO2 concentration alarm, high & low temperature alarm, door-opening alarm, humidity alarm, low water level alarm (optional), O2 concentration alarm (optional)
|
|
Data transfer
|
USB
|
|
Inner dimensions
|
557x518x597mm
|
|
Outer dimensions
|
718x744x956mm
|
|
Weight (accessories excluded)
|
≤80KG
|
|
Temperature Control
|
|
Temperature range
|
Ambient+3°C~55°C (ambient: 5℃～35℃)
|
|
Temperature uniformity at 37°C
|
±0.3°C
|
|
Temperature stability at 37°C
|
±0.1°C
|
|
Temperature Recovery Time
(recover to 37°C after 30s door-opening)
|
< 5 minutes
|
|
CO2 Control
|
|
CO2 sensor
|
Dual IR sensor
|
|
CO2 concentration range
|
0-20%
|
|
CO2 accuracy
|
±0.1 %
|
|
CO2 concentration recovery time
(recover to 5% after 30s door-opening)
|
< 4 minutes
|
|
HEPA filter
|
Filter 99.97% of 0.22μm foreign particles
|
|
CO₂ connector
|
8mm tube (inner diameter)
|
|
CO₂ pressure
|
0.1MPa
|
