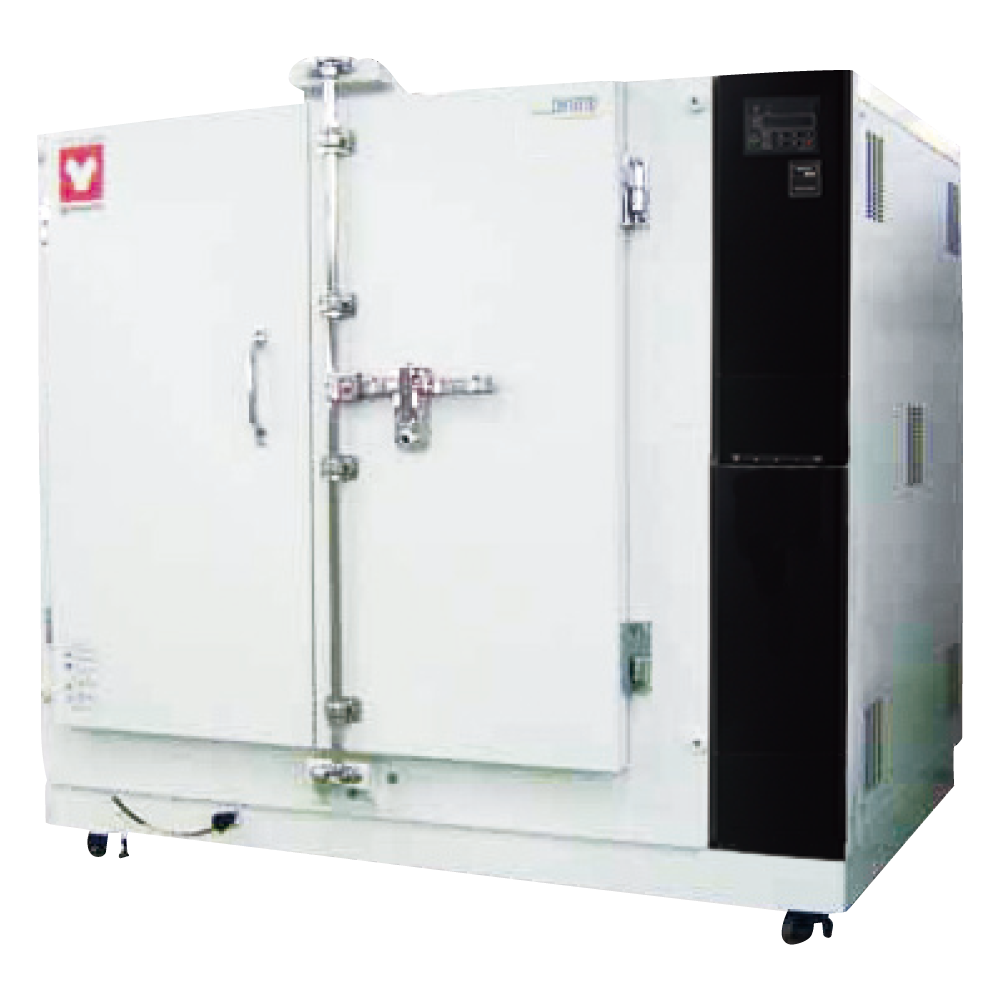

Yamato DH832 Fine Oven (Room temp. +15C~300C) 512L 220V 3 ph 20A, no plug round terminal
Manufacturer: Yamato Scientific
Model: DH-832
Condition: New
Estimated lead time: As of 5-19-26, currently 1 in stock. Ships in 1-2 weeks from order and payment. Order now while supplies last. If out of stock at time of order ships in 18-25 weeks from order and payment. Contact us for updated availability.
Warranty: 1 year limited manufacturer's warranty.
Features:
- Allows precision maintenance of large parts at a constant temperature
Quick exhaust and cooling in the unit with the exhaust damper
- Interactive key entry on the control panel with a green LED digital display for easy settings
- Features power consumption/ CO2 emissions monitoring
- Increased safety and self diagnostic functions
Specifications:
| Item Code |
211762 |
| Model |
DH832 |
| System |
Forced air circulation and ventilation |
| Operating temp. range |
Room temp. +15°C~300°C |
| Temperature fluctuation |
3.0°C (at 300°C) |
| Temperature slope |
18°C (at 300°C) |
| Temperature controller |
PID control |
| PID Z control Temp setting method |
Digital setting with ▲/▼ keys |
| Timer |
1 min~99 hrs 59 min (Resolution: 1 minute or 1 hour) |
| Operation function |
Fixed temperature operation, Program operation (Maximum 99 steps, up to 99 patterns, repeat operation function) |
| Operation function |
Duration/time select timer operation function (Fixed temperature operation, auto start/auto stop/quick auto stop, program operation auto start) |
| Additional functions |
Accumulated Power on and Operation Time (up to 65,535 hours); Calendar Time (24 hours); Calibration Offset; Monitor Display of Accumulated Power Consumption, |
| Additional functions |
Total CO2 Emission, and Heater operating Output; Power Recovery Mode; User Settings Save and Restore Function; Fan Speed Setting Function |
| Sensor |
K-thermocouple (double sensor) |
| Heater |
Stainless steel pipe heater with fins |
| Heater |
6.9kW |
| Fan motor |
Stainless steel axial flow fan (capacitor motor: 20W) |
| Cable port |
I.D. ø30mm (rear) |
| Heat insulator |
Glass wool + ceramic fiber |
| Other additional structure |
Exhaust damper (manual operation) |
| Safety device |
Self-diagnostic functions (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), Door switch, Fan Failure Detection, key lock, independent overheat protection, electric leakage breaker with over current protection |
| Shelf / support |
3 pcs. / 6 pcs. |
| Internal dimensions（W×D×H mm） |
800×800×800mm |
| External dimensions（W×D×H mm） |
1500×1015×1330mm |
| Remarks(dimensions) |
512L |
| Power Source |
AC220V 20A
Three-phase |
| Weight |
350kg |
