8 foot Walk-in Ducted Cleanroom fume hood bundle with HEPA filter |  Sentry Air SS-CR8-HW-D-2 (NEW)

Warranty:  Limited 1 year warranty on defects due to materials or workmanship

Condition: New

Manufacturer: Sentry Air

Model: SS-CR8-HW-D-2 bundle

Estimated Lead time:  typically ships in 1-2 weeks from order and payment.

Bundle Includes:

• SS-CR8-HW-D-2 8 foot walk in cleanroom ducted fume hood
• SS-CR8-HF Model FFU HEPA filter with anti-microbial gasket
• Operations manual

• Power cord

Features

Meets up to Static ISO Class 7 Cleanroom
• Heavy-duty steel frame and 1/4” twinwall
polycarbonate walls
• 1 or 2 room-side serviceable Fan Filter Units
• 2 LED light panels
• Optional remote control

Typical Applications:
• Pharmaceutical compounding
• Electronics and semiconductors
• Aerospace product development
• Inspection and weighing stations
• Medical device production
• Cosmetics production
• Automotive manufacturing
• Temporary cleanroom
• Optics assembly
• Robotics
• Food packaging

Specifications:

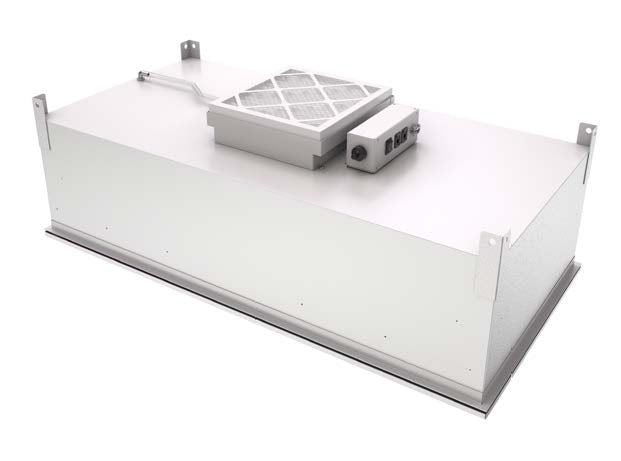

• Fan Filter Unit Specifications
• Cabinet Material Powder coated carbon steel
• Dimensions 48” L x 24” D x 17” H
• Weight 90 lbs
• Airflow 650 CFM (max speed)
• Service-side Room-side Serviceable
• Motor EC motor
• Electrical

• Hardwired by an electrician
• 120/1/60, 2.2 amps
• Max power input: 175 W
• Filter Type HEPA [up to 99.97% efficiency on particles 0.3 microns and larger]
  Sound Level 65 dba when running at the speed to meet ISO 7

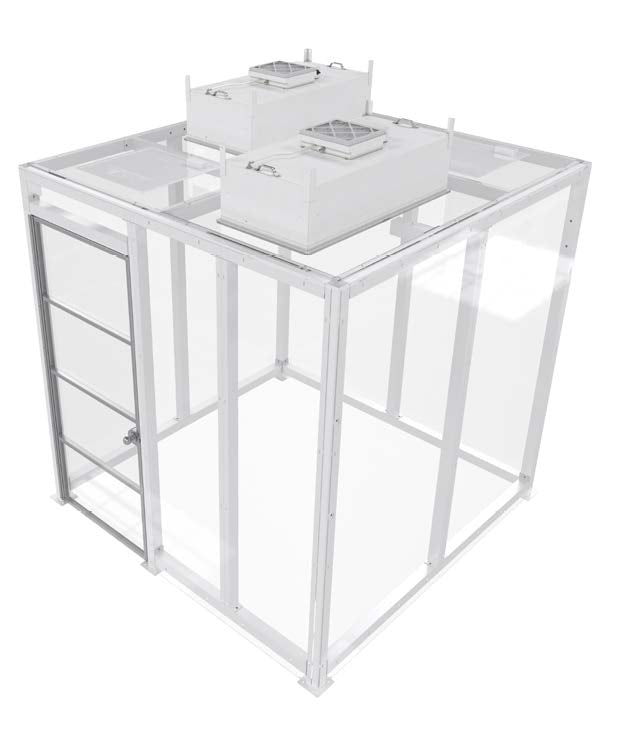

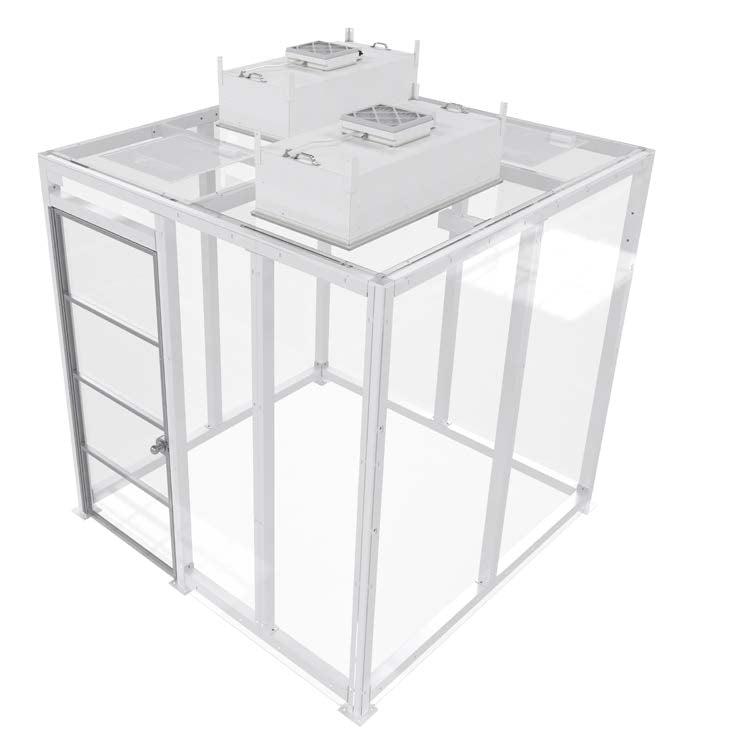

• Walk-in Modular Cleanroom Specifications
  Dimensions
  (W x D x H)
• Full: 96.5” x 96.5” x 113”
• Outer: 96.5” x 96.5” x 96”
• Interior: 90” x 90” x 93”
• Door Dimensions Width: 36.5”
• Height: 85”
• Frame Material 3” x 3” powder-coated steel structural tubing
• Wall Material 1/4” clear twinwall polycarbonate
• Weight 800 - 900 lbs
• ISO Rating up to Static ISO Class 7
• LED Lights 2’ x 2’ LED Even-Glow
• 4400 lumens, 40 W, 0.33 A
  WarrantyLimited one-year warranty from date of shipment on defects due to materials or workmanship

Notes:

1) Sentry unit will ship substantially assembled. 2) Hoods may ship pre-fabricated for partial assembly and set-up.

2) Limited one-year warranty from date of shipment on defects due to materials or workmanship.

3) SAS products are not intended for use with explosive, highly flammable, or toxic
substances and environments (e.g. where the Lower Flammability Limit may be exceeded; please see chemical’s specific MSDS for more information on these limits). So as to not compromise the integrity of the material, operating conditions within the system should not exceed 170°F.

4) Suitability for a specific application is the sole responsibility of the purchaser.

5) Custom Fabrications are not eligible for cancellation or return.

Documents

Sentry Air Systems Walk In Modular Cleanroom FFU Brochure
