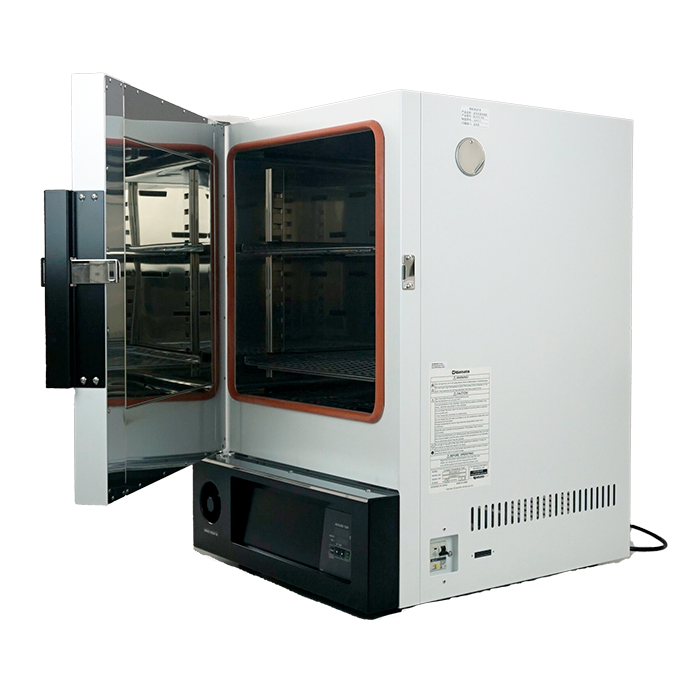

Yamato DKL-601C Forced Convection Economy Oven 150L 115V 50/60Hz 13.5A with plug
Manufacturer: Yamato Scientific America
Model: DKL-601C
Condition: New from the manufacturer
Warranty: 1 year manufacturer's warranty includes replacement parts and over the phone technical support.
Estimated lead time: If in stock: Ships in 1-2 weeks from order and payment. If out of stock: Ships in 45 business days from order and payment.
Currently 7 in stock as of 11/4/2025. Ships in 1-2 weeks from order and payment. Order now while supplies last. Contact us to confirm availability prior to order.
Features:
Description
Standard forced convection constant temperature ovens with simple operation functions
Performance and functions
- Fixed temperature, Quick auto stop, Auto stop, and Auto start operating modes with easy control capabilities
- Settings can be made digitally with the dedicated operation menu keys or the ▲/▼ keys
- Calibration off-set as auxiliary function
Safety features
- Self-diagnostic functions, MCB with over current protector, hydraulic standalone overheat prevention device
Specifications
| Item Code |
212878 |
|
|
| Model |
DKM600 |
|
|

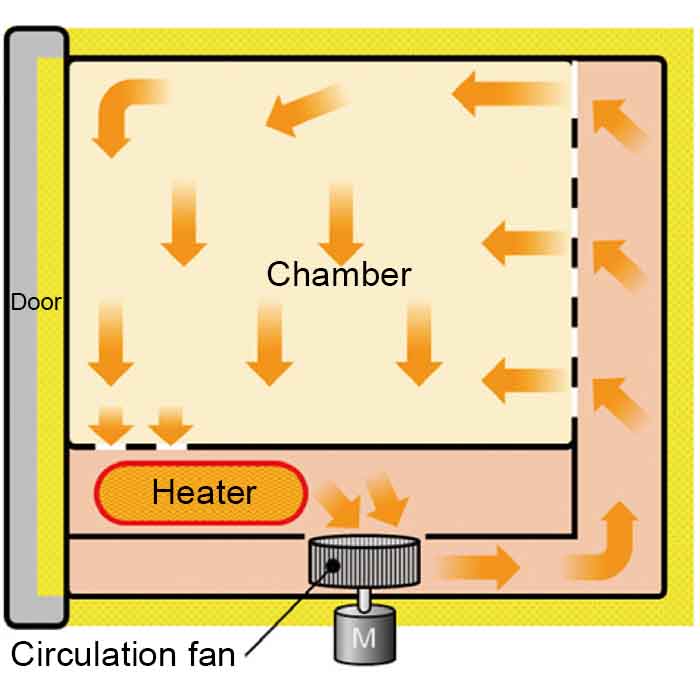

| Circulation method |
Forced air circulation |
|
|
| Operating temperature range |
Room temp. +10~260°C |
|
|
| Temp. control accuracy |
±1°C (at 260°C) |
| Temp. distribution accuracy |
±2.5°C (at 260°C) |
|
|
| Temp. rise time |
~90min (at room temp. ~260°C) |
|
|
| Interior material |
Stainless Steel (SUS430)
|
|
|
| Exterior material |
Steel plate SPCC (powder coating) |
|
|
| Heat insulating material |
Glass wool |
|
|
| Heater |
SUS pipe heater |
|
|
| Heater |
1.5kW |
|
|
| Fan type / Motor |
Sirocco fan 10W |
|
|

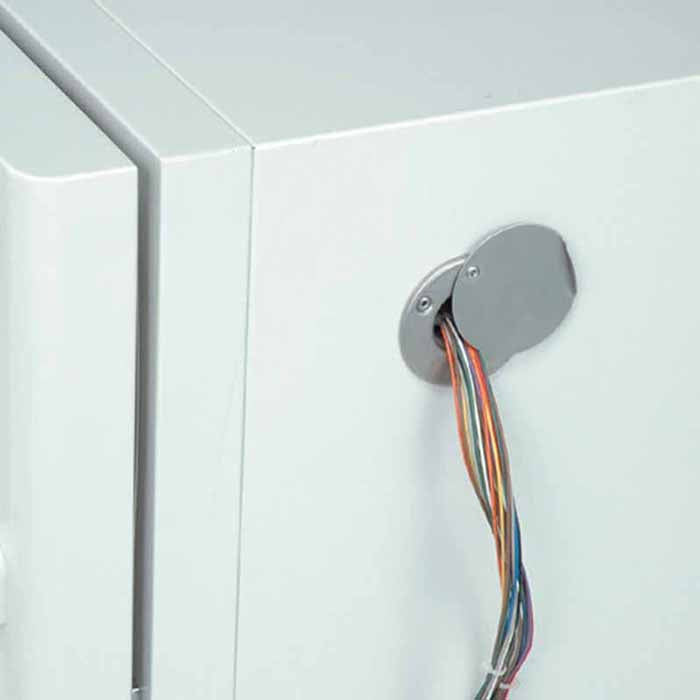

| Cable port |
30 mm l.D.×1 pc. (right side) |
|
|
| Exhaust port |
30 mm l.D.×2 pcs. (top) |
|
|
| Temp. controller |
PlD control by microprocessor |
|
|
| Temp. setting method |
Digital setting by ▲/▼ key |
|
|
| Temp display method |
Fixed temperature, Quick auto-stop, Auto stop, Auto start |
|
|
| Operation functions |
Fixed temperature, Quick auto-stop, Auto stop, Auto start |
|
|
| Additional functions |
Calibration off-set function |
|
|
| Heater circuit control |
SSR control |
|
|
| Sensor |
K-thermocouple |
|
|
| Safety device |
Self diagnostic functions (temperature sensor error, memory error, auto overheat prevention, measured temperature error), MCB with an over current protector, hydraulic standalone overheat prevention device |
|
|
| Shelf plate with standard load |
15kg/pc. |
|
|
| Shelf support step number |
12 steps |
|
|
| Shelf support pitch |
35mm |
|
|
| Shelf plate |
Stainless steel |
|
|
| Shelf plate |
2 pcs. |
|
|
| Shelf support |
4 pcs. |
|
|
| Internal dimensions（W×D×H mm） |
610×500×500mm |
|
|
| Internal capacity |
150L |
|
|
| External dimensions（W×D×H mm） |
710×650×880mm |
|
|
| Power Source |
AC115V 13.5A with plug |
|
|
| Weight |
~65kg |
|
|
