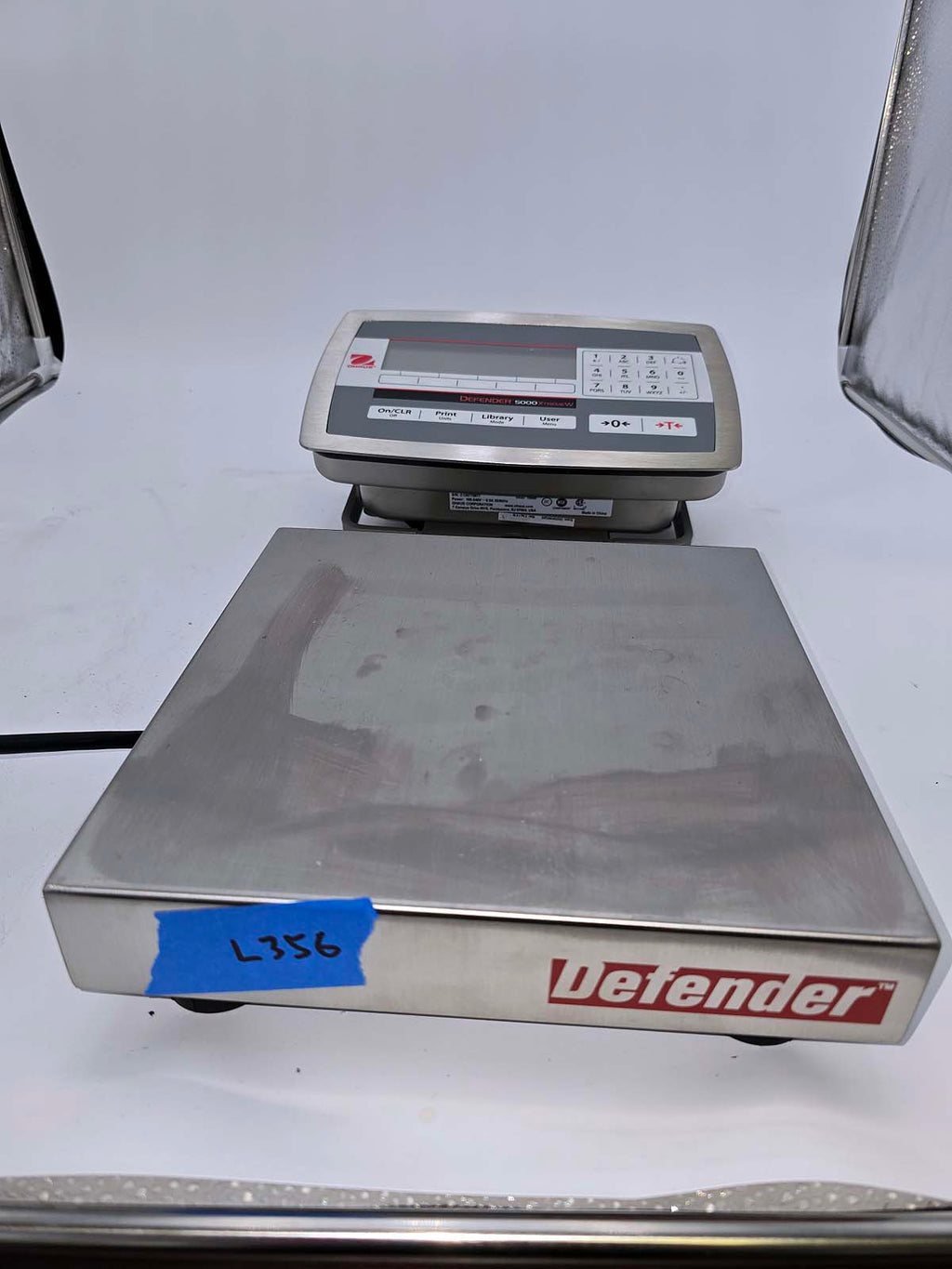

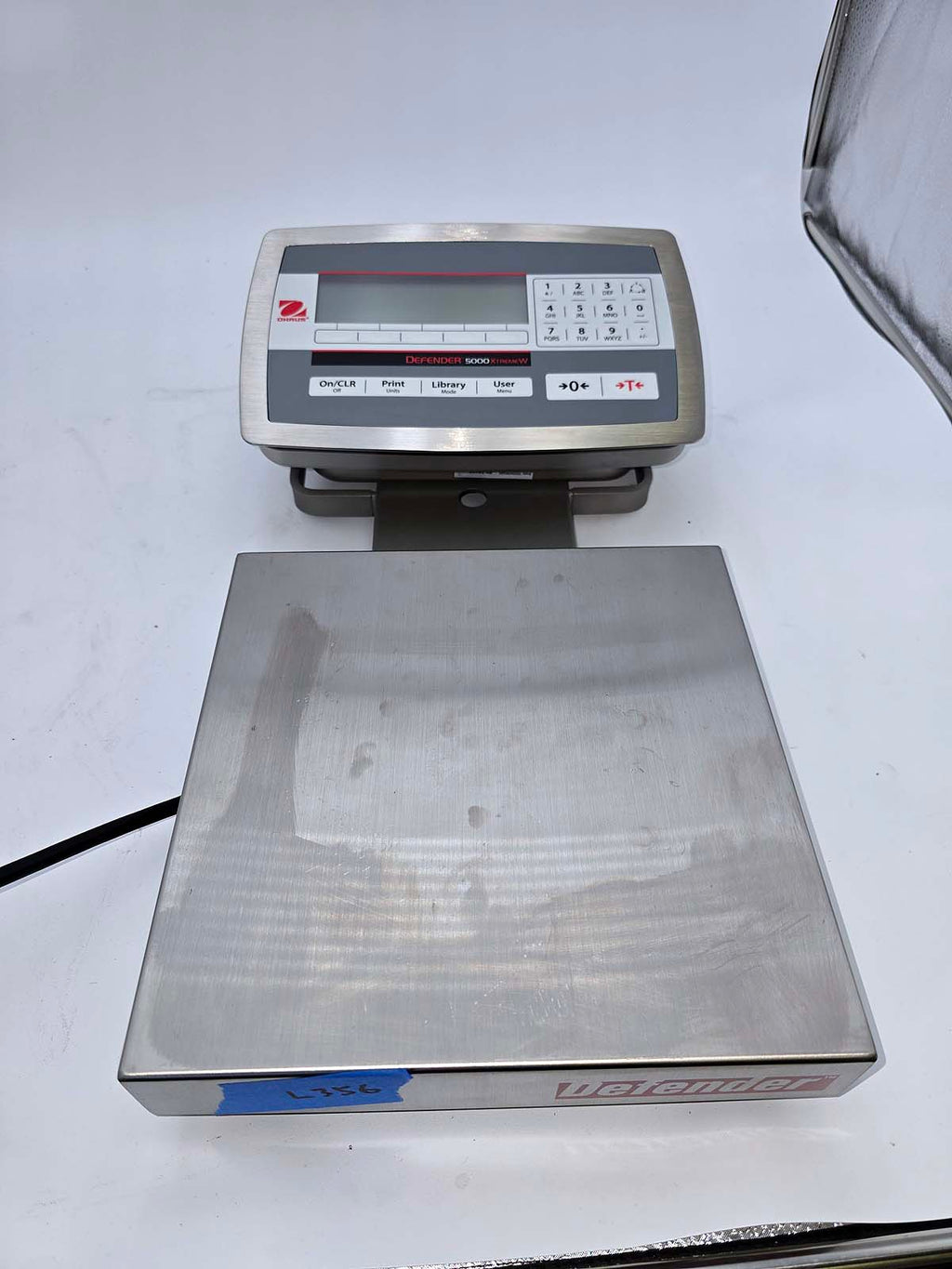

Ohaus Defender 5000 washdown D52XW25WQR5 Bench Scale 25kg x 1 g
Manufacturer: Ohaus
Model: D52XW25WQR5
Part: 30461665
Condition: Used. Excellent condition.
Estimated lead time: Typically ships in 2-3 business days.
Warranty: 30 days
Includes:
- Stainless Steel Defender 5000 base
- Display
- Weighing pan
- User manual (pdf copy)
Key Features:
- Maximum Capacity: 50 lb (25 kg)
- Readability: 0.002 lb (1 g)
- Platform Size (LxW): 12 in x 12 in (305 mm x 305 mm)
Applications

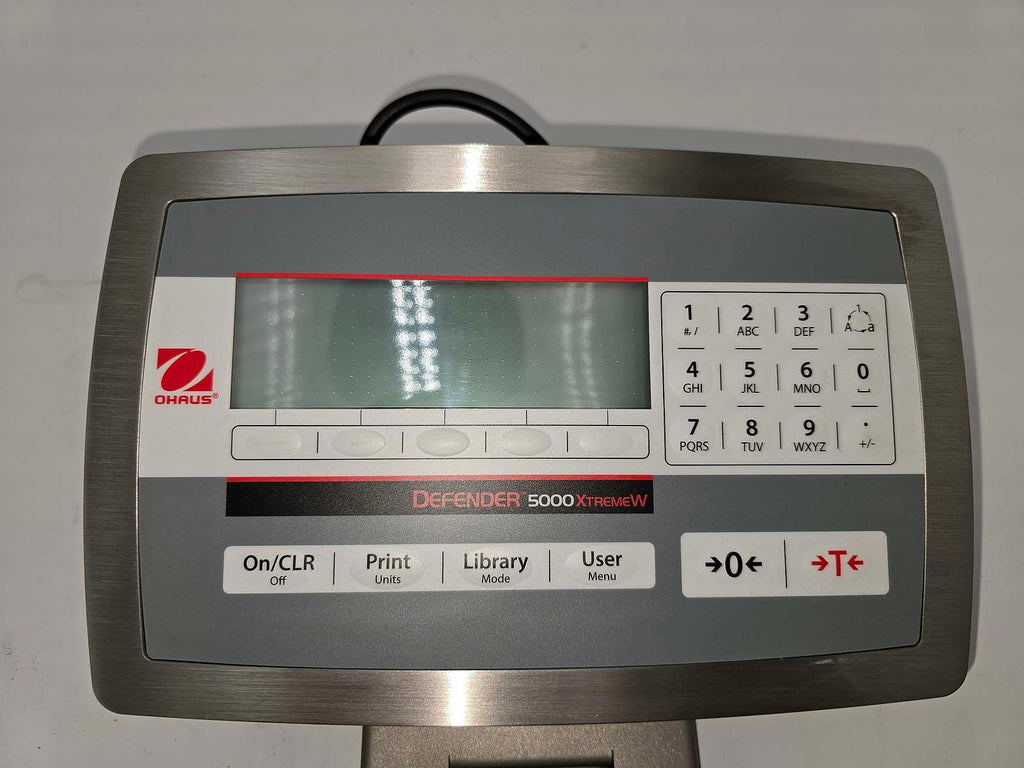

- Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
- Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
- Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
- 304-grade stainless steel platform and frame, stainless steel IP68 indicator, IP67 load cell, non-slip adjustable rubber feet
- Resolution up to dual range 3,000e, 150% overload capacity, checkweighing display and beep, menu lock switch, selectable display languages, selectable filter, stability indicator, overload/underload indicators, selectable display controls, auto print and tare
Specifications
| Maximum Capacity |
50 lb (25 kg) |
| Readability |
0.002 lb (1 g) |
| Readability (Certified) |
0.01 lb (5 g) |
| Platform Size (LxW) |
12 in x 12 in (305 mm x 305 mm) |
| Legal for Trade |
Measurement Canada Approved; NTEP Certified |
| Power |
AC Power (Included); Rechargeable Battery (Not Included) |
| Battery Life |
20 Hours with Rechargeable Battery |
| Communication |
RS232 (Included); 2nd RS232/RS485/USB (Available as an Accessory); USB Host (Available as an Accessory); WiFi/Bluetooth (Available as an Accessory); Ethernet (Available as an Accessory) |
| Dimensions (HxLxW) |
4.8 in x 23.1 in x 12 in (122 mm x 588 mm x 305 mm) |
| Display |
Dot matrix LCD with white LED backlight |
| Net Weight |
22.1 lb (10 kg) |
| Outputs |
3 In/4 Out digital I/O; 4 - 20mA |
| Platform Construction |
Stainless Steel |
| Protection Rating |
IP67 |
| Second Scale Input |
Not Applicable |
| Tare Range |
To capacity by subtraction |
| Units of Measurement |
Custom; Gram; Kilogram; Metric Tonnes; Ounce; Pound; Pound:Ounce; Tonne |
| Working Environment |
14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
