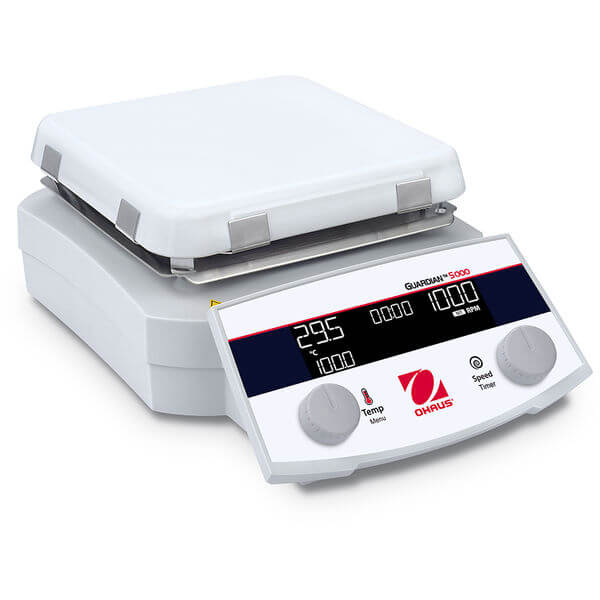

OHAUS e-G52HS07C Guardian 5000 Hotplate Stirrer with 7 in. x 7 in. Ceramic Plate (20L, 120V) (30541631)
Manufacturer: Ohaus
Model: e-G52HS07C
MFN: 30541631
Condition: New. Ships directly from the manufacturer.
Estimated lead time: Typically ships in 1-2 weeks from receipt of order and payment.
Warranty: Ohaus 2 year warranty.
Specifications
| Function |
Heating and Stirring |
| Capacity |
20 L |
| Plate Construction |
Ceramic |
| Plate Size (Length) |
18 cm (7 in) |
| Plate Size (Width) |
18 cm (7 in) |
| Temp. Range |
Ambient + 5°C – 550°C |
| Speed Range |
50 rpm – 1,800 rpm |
| Timer |
1 minute – 99 hours, 59 minutes |
| Control |
Digital |
| Dimensions (Length) |
329 mm (12.94 in) |
| Dimensions (Width) |
221 mm (8.69 in) |
| Dimensions (Height) |
116 mm (4.56 in) |
| Calibration |
Temperature Calibration 3 Plate/3 Probe |
| Communication |
Ethernet (Available as an Accessory);
USB (Available as an Accessory);
RS232 |
| Display |
High contrast brilliant LCD display |
| Heating Power |
1,582 W |
| Net Weight |
4.6 kg (10.1 lb) |
| Power |
100V-120V~ 15A 50/60Hz |
| Probe Temperature Measurement Accuracy |
±0.2°C + PT1000 (Class A) Tol. |
| Safety Certification |
CE;
TUV |
| Speed Stability |
+/-2% |
| Temp. Stability |
+/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C |
| Temperature Increments |
0.5 °C |
| Temperature Probe |
Pt100;
Pt1000;
Available as an Accessory |
| Temperature Readability |
0.5 °C |
| Working Environment |
41°F – 104°F, 80% RH, Non-condensing |
| Working Environment |
5°C – 40°C, 80% RH, Non-condensing |
Logistic Specifications
| Country of origin |
CN |
| Customs tariff number |
8419899585 |
