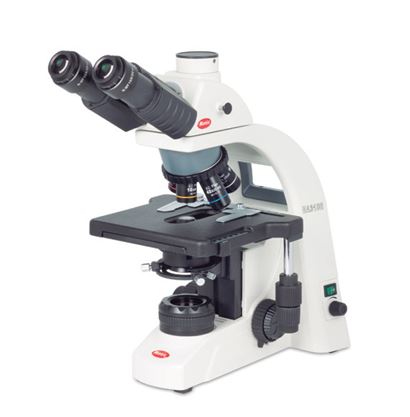

Motic BA310E contrast compound microscope with 8MP camera package
Manufacturer: Motic
Model: BA310E LED Phase package
Condition: New from Manufacturer
Status: NEW
Warranty: 5 years on mechanical components and 1 year on electrical components
Estimated lead time: Currently in stock. Typically ships in 1-2 weeks from order and payment. Order now while supplies last.
Includes:
- BA310E basic LED trinocular microscope
- A8 8MP MPixel digital camera with C-mount adapter
- Objectives: 4x, 10x, 40x, and 100x oil; 20X objective is used. Ships separately
- MotiConnect software for Windows, OSX, and Linux
- Calibration slide
- Dust cover
- Operations manual (pdf copy)
- Power cord and USB cable
- 5 year warranty on mechanical components and 1 year on electrical components
Specifications:
| Model |
BA310E LED package |
| Objectives |
4X/0.10 (WD 15.9mm),
10X/0.25 (WD 17.4mm),
20X/0.45 (WD=0.9mm) (used)
40X/0.65/S (WD 0.5mm),
100X/1.25/S-Oil (WD 0.15mm)
|
| Objective classification |
CCIS EC Plan Achromatic, DIN |
| Eyepieces |
Widefield N-WF10X/20mm with diopter adjustment |
| Nosepiece |
Reversed quintuple |
| Transmitted illumination |
3W LED with intensity control |
| Stage |
Mechanical stage with built-in low position coaxial stage control and sample holder |
| Stage size |
180 x 170mm |
| Optical system |
Colour Corrected Infinity Optical System |
| Observation tube |
Trnocular head, Siedentopf type |
| Condenser |
Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders |
| Diaphragm |
Iris diaphragm |
| Sensor type |
sCMOS |
| Capture resolution |
8MP |
| Live display mode through USB |
3840 x 2160 pixels |
| Data transfer |
USB 2.0 |
| Software |
MotiConnect for Windows, OSX and Linux |
| Exterior Dimensions
|
8.7"W x 15.7"D x 18"H
|
| Shipping weight |
19 lbs. |
| Electrical |
100-240V, 50/60Hz |
A binocular microscope perfect for basic work in life sciences, education, and industrial. The sections, smears and native transparent samples are clear and precise due to the use of Motic's Plan Achromatic objectives. The BA210 Digital also features an integrated 3MP camera with Motic Images 3.0 software. Students and lab technician benefit from the pre-installed optics and illuminations. Allowing right out of the box use.
