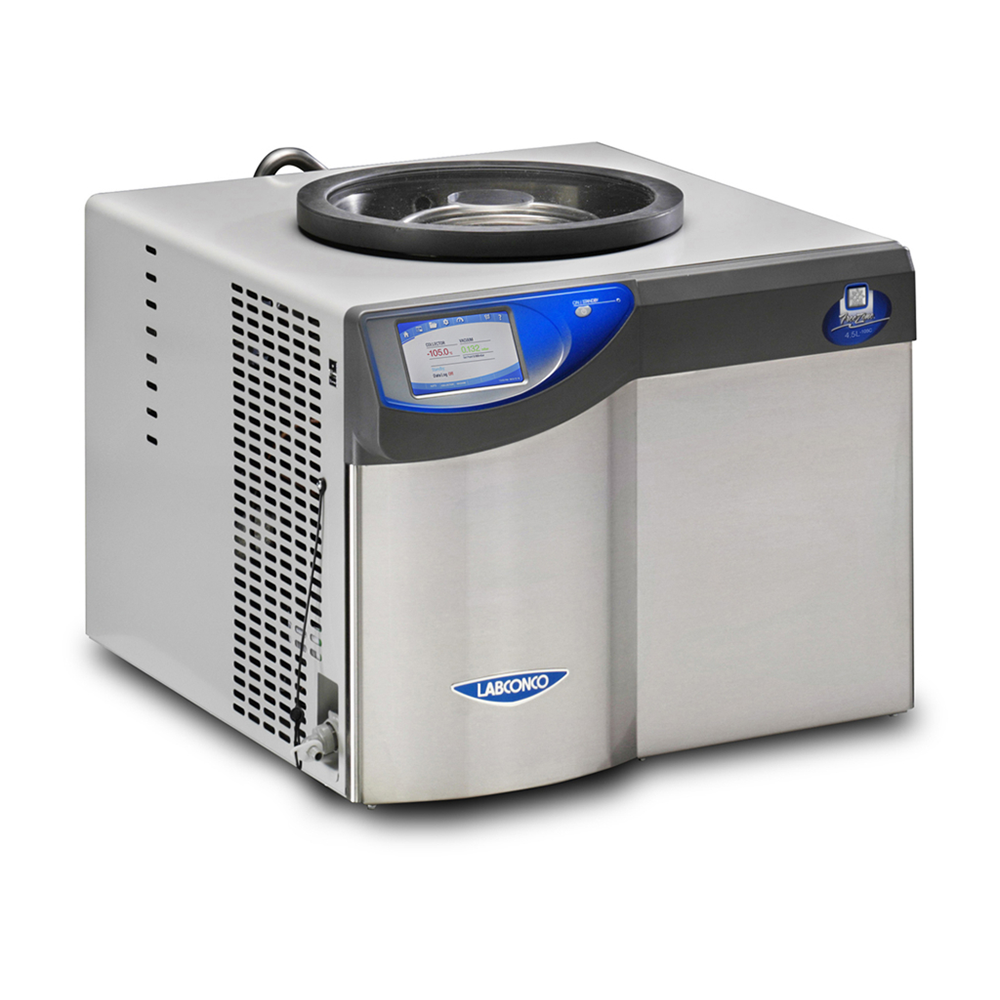

Labconco FreeZone 4.5L -84° C Benchtop FreezeDryer with PTFE coil and collector 115V, 60Hz (710402000)

Manufacturer: Labconco

Model: FreeZone 4.5L

Part: 710402000

Condition: New

Estimated lead time: ships in 6-7 weeks from order and payment.

Warranty: 1 year manufacturer's warranty

Includes:

• The Labconco 710402000 FreeZone 4.5L -84C Benchtop Freeze Dryer with PTFE coil and collector 115V, 60Hz Vacuum Hose
• Drain Hose
• Hose Clamp x 2
• Baffle
• Power Cord
• Operator's Guide
• Manufacturer's Documentation
• 1 Year Manufacturer's Warranty

Features

• Upright stainless steel collector coil capable of holding from 2.5L to 8L of ice before defrosting. Acrylic collector lid, 3/4" thick, has neoprene gasket and 3" diameter port for connection of drying accessories (sold separately).
• Compact benchtop design with a small footprint.
• Brushed stainless steel and glacier white, powder-coated steel exterior with blue accents.
• Full color, 5" capacitive touchscreen with Lyo-Works™ OS:
  • Real time display of collector temperature, vacuum level, and optional End-Zone™ end point detection system.
  • Start–up mode for collector cool-down and vacuum pull-down (automatic or manual).
  • Operating mode (standby or run).
    Vacuum set point, alerts, diagnostic tests, user manual, defrost control, and optional drying accessory parameters.
  • Data logging stores and displays data in table or chart format, and may be exported via USB or Ethernet.
  • Settings include language (English, Spanish, German, French, Italian, Chinese, Japanese, Portuguese), time, time zone, temperature (° C or ° F), and vacuum (mBar, Torr, or Pa).
  • Alerts are programmable to send via Ethernet connection to user-entered email addresses.
• Display settings include brightness, touch sounds (on/off), and screen time out in minutes (on/off).
• Maintenance alert settings include vacuum pump oil change, refrigeration cleaning, total operating hours and line voltage offset.
• Level-specific security lock-out prevents changes to programs and other system parameters.
• Hot gas defrost with auto shut off at +60° C (+140° F).
• On/standby switch.
• Moisture sensor that prevents refrigeration or vacuum start-up when moisture is detected in the drain line.
• Vacuum control valve that maintains vacuum level set point.
• Vacuum break valve that bleeds air into the system when power to the freeze dryer or vacuum pump is shut off. If a power outage less than approximately 5 minutes occurs, the freeze dryer will restart and the refrigeration and vacuum system will resume operation once power is restored. If the power failure is more than approximately 5 minutes and the collector warms above safe limits, the freeze dryer will not automatically restart.
• Side-mounted USB port and rear-mounted Ethernet connection.
• Side-mounted, quick-disconnect drain hose fitting and lanyard with hose connector. 18", 1/4" ID silicone tubing and clamp included.
• Rear-mounted electrical receptacle for vacuum pump connection.
• 3-wire electrical cord with plug.
• 3/4" OD vacuum connection, 50" of 3/4" ID vacuum hose and two clamps.

Specifications

• Weight 197.0
• Electrical 115V, 60 Hz, 16A
• Collector Temperature -84° C
• Ice Holding Capacity 4.5L
• Plug Type North America, 115V
• Style Benchtop
• Vacuum Pump Displacement Required 98 L/min or Larger Displacement
• Conformance CAN/CSA C22.2, UL

Required Accessories (Not Included)

• Vacuum pump with a displacement of at least 98 L/min, 0.02 mBar ultimate pressure and fitting suitable for 3/4" ID vacuum hose.
• Freeze Dry Glassware, Small Tray Dryer, or other drying accessory
