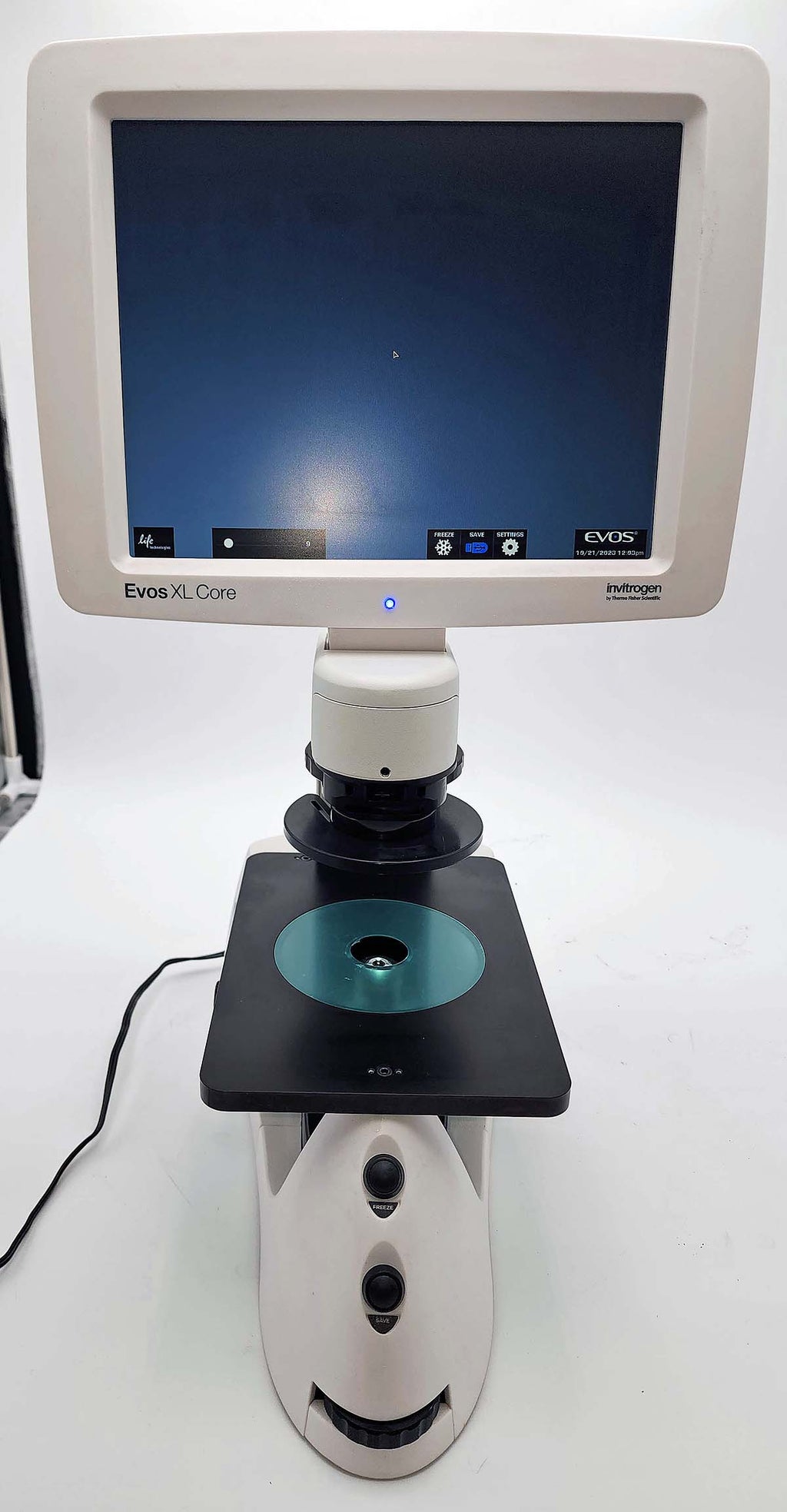

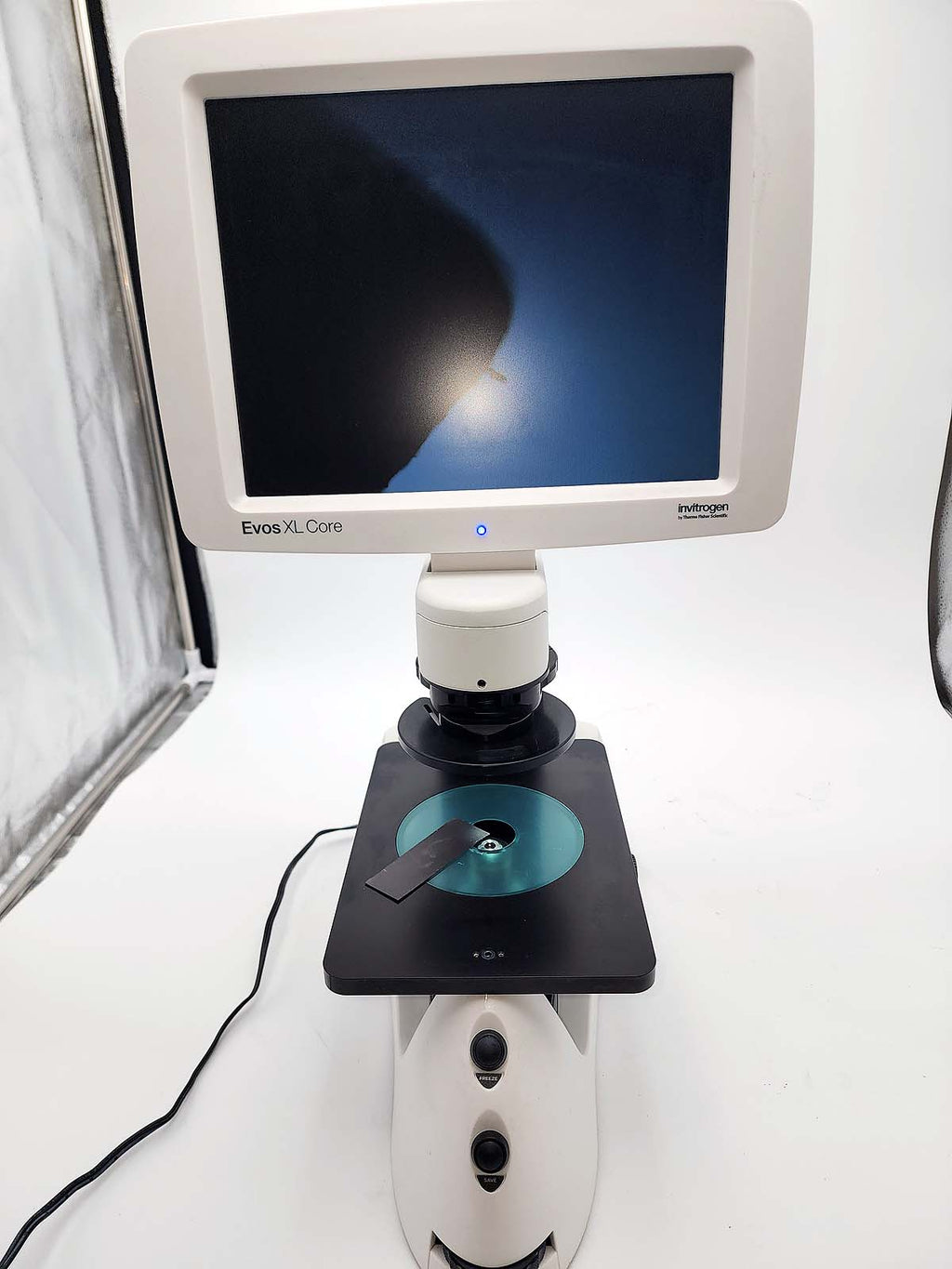

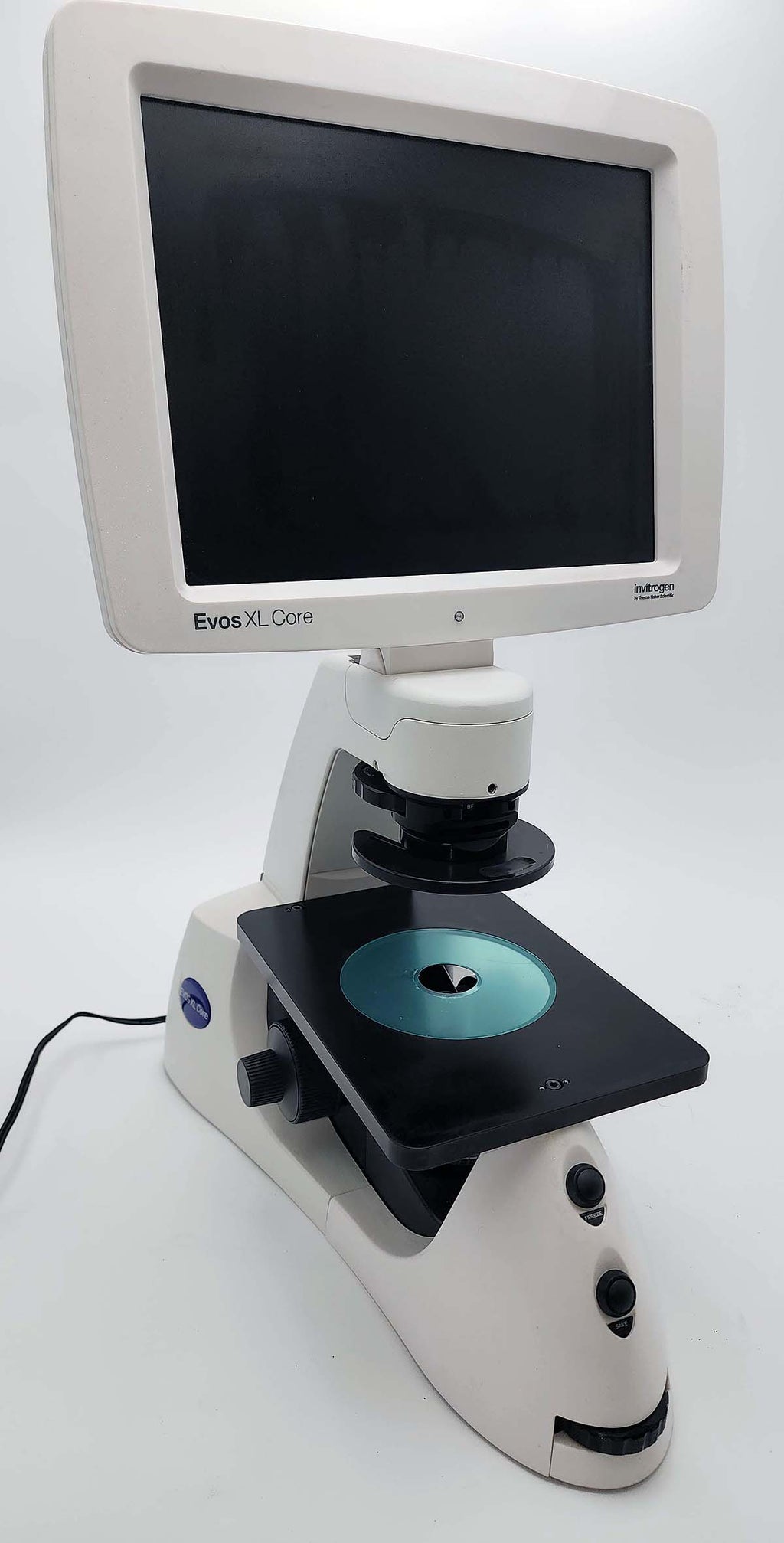

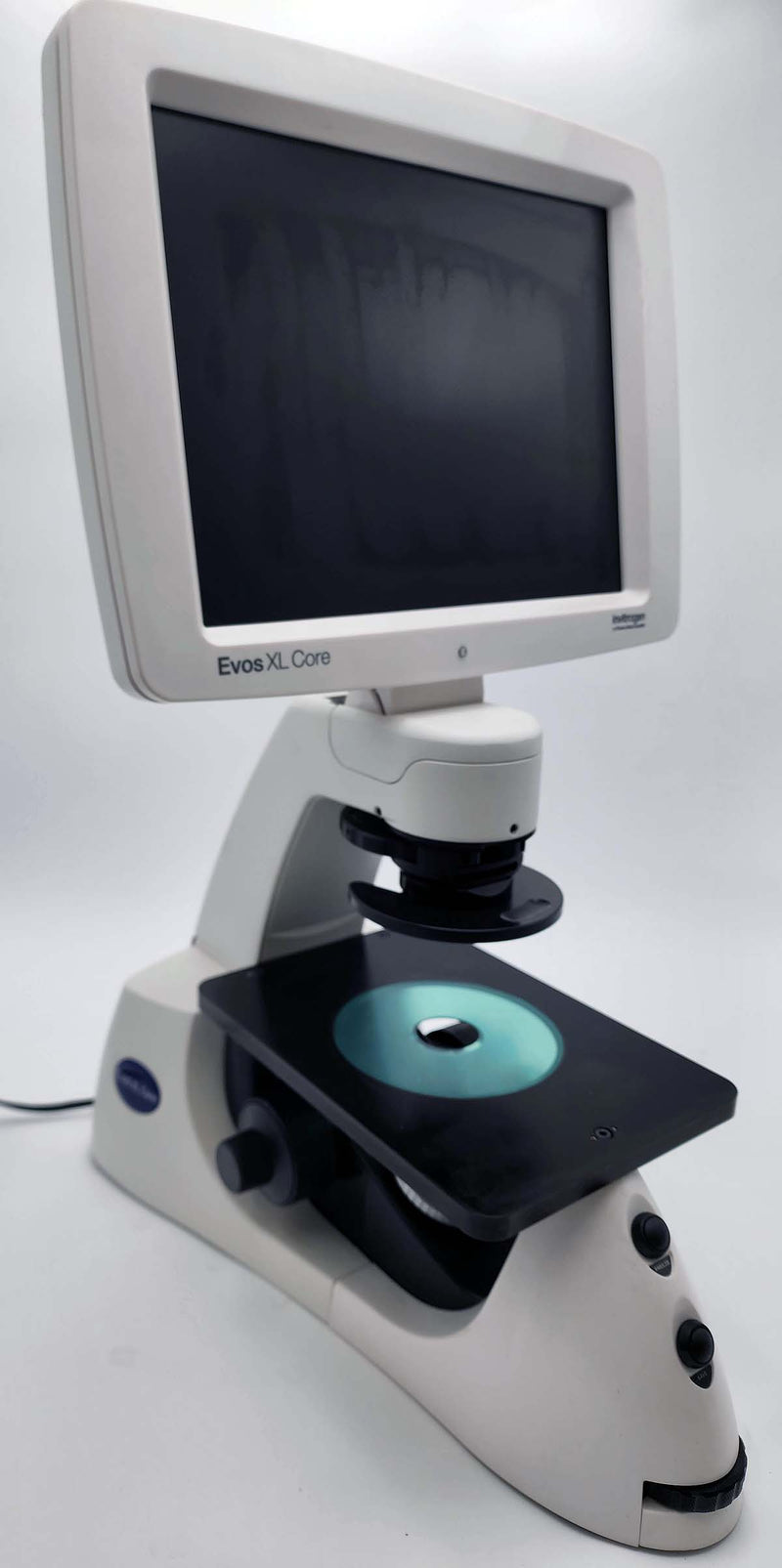

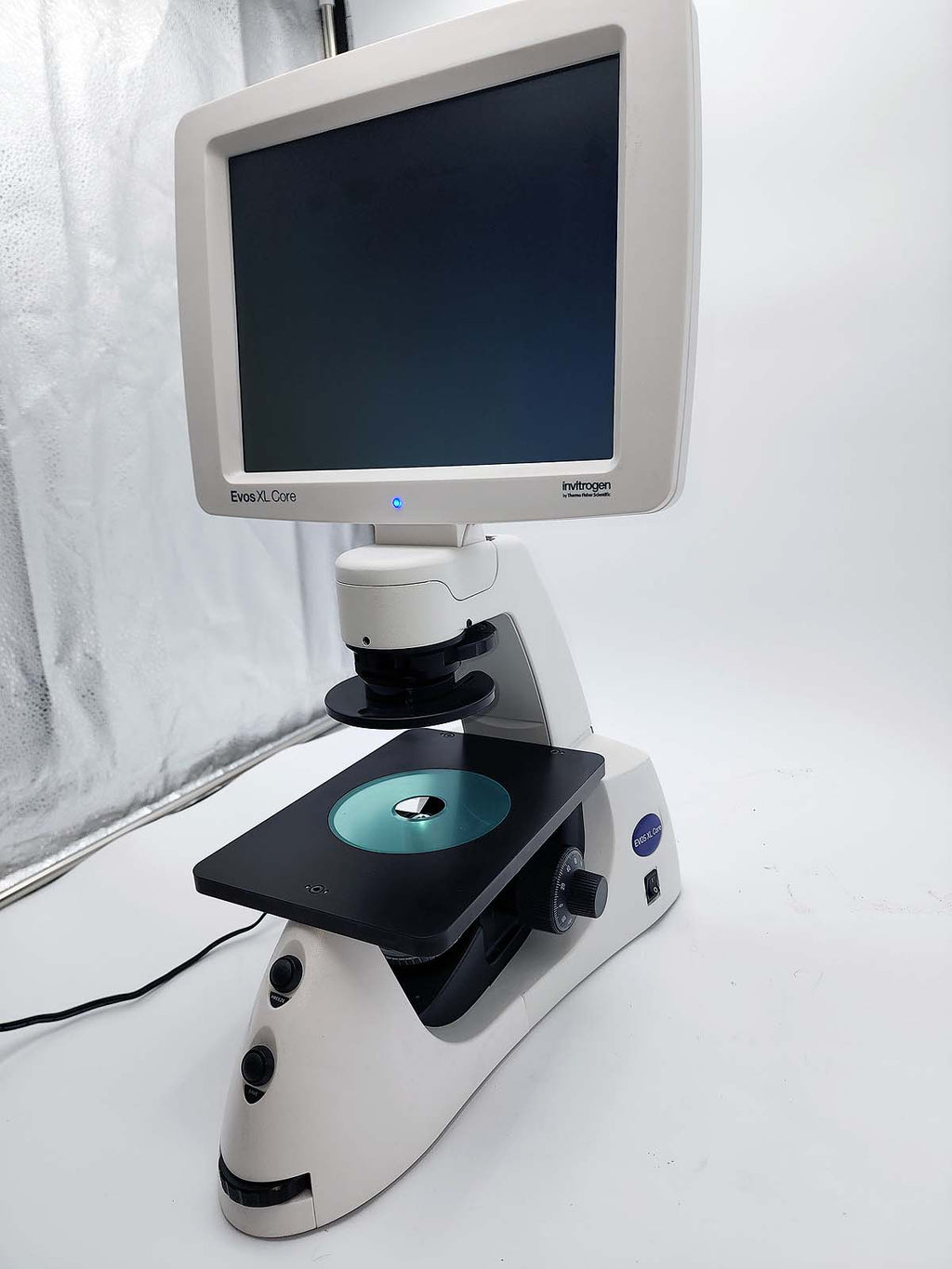

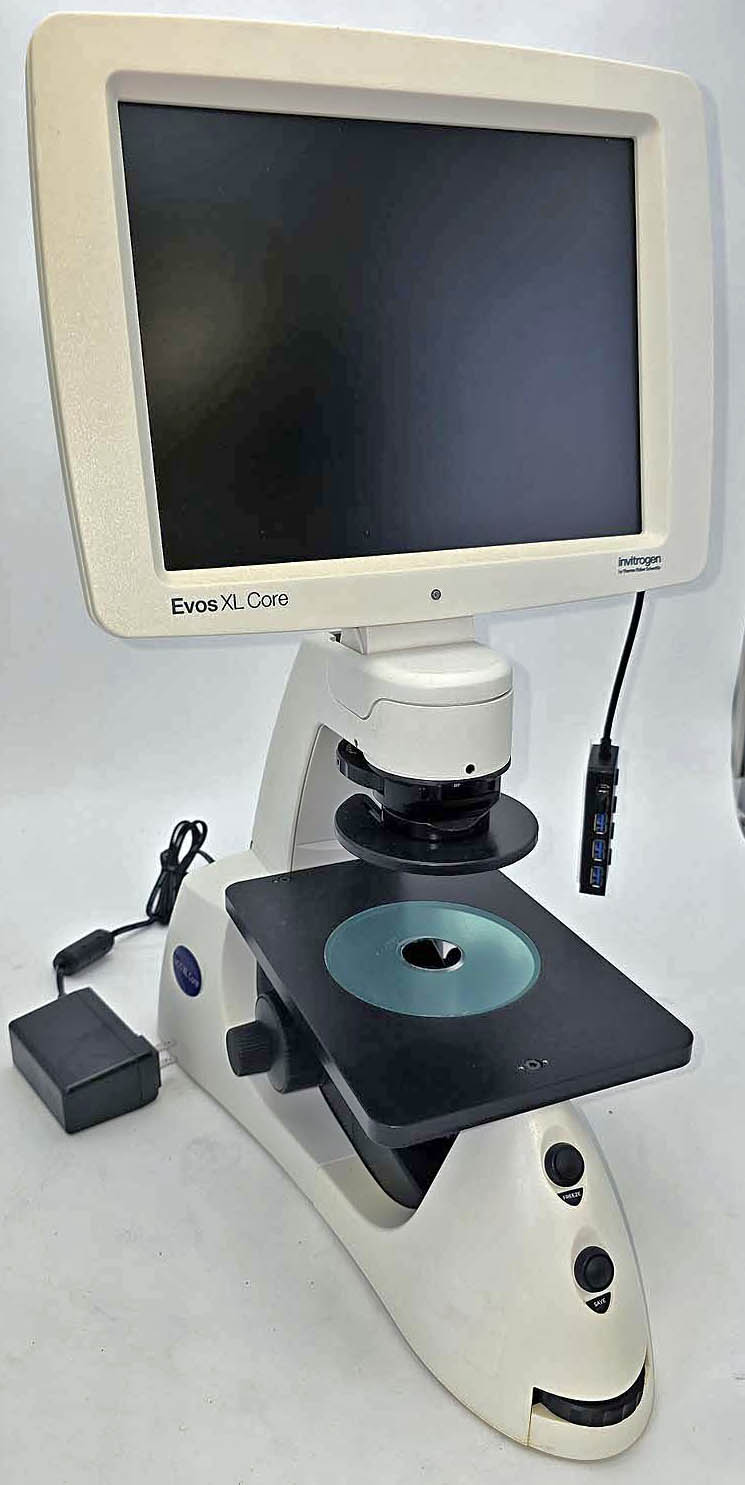

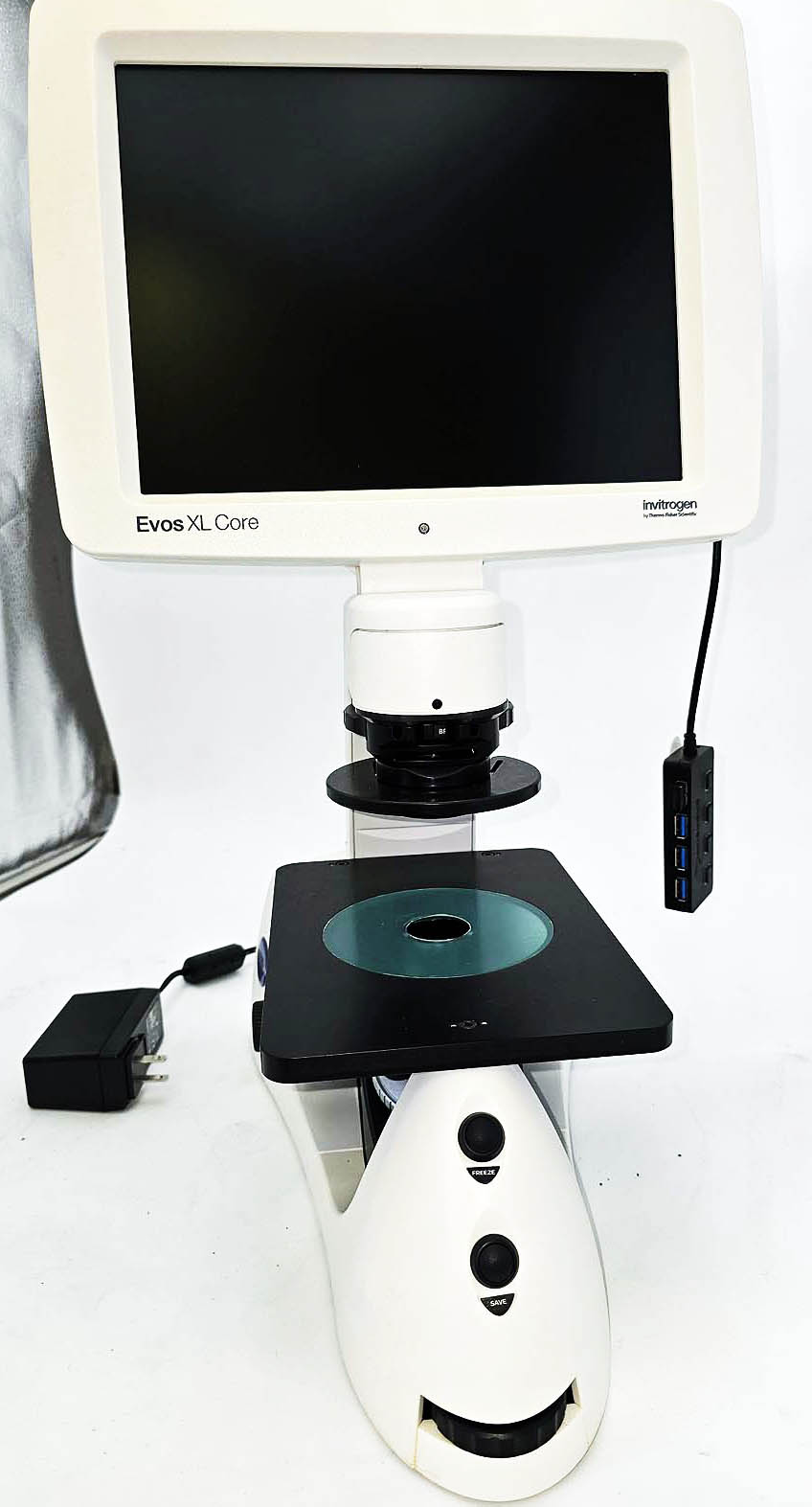

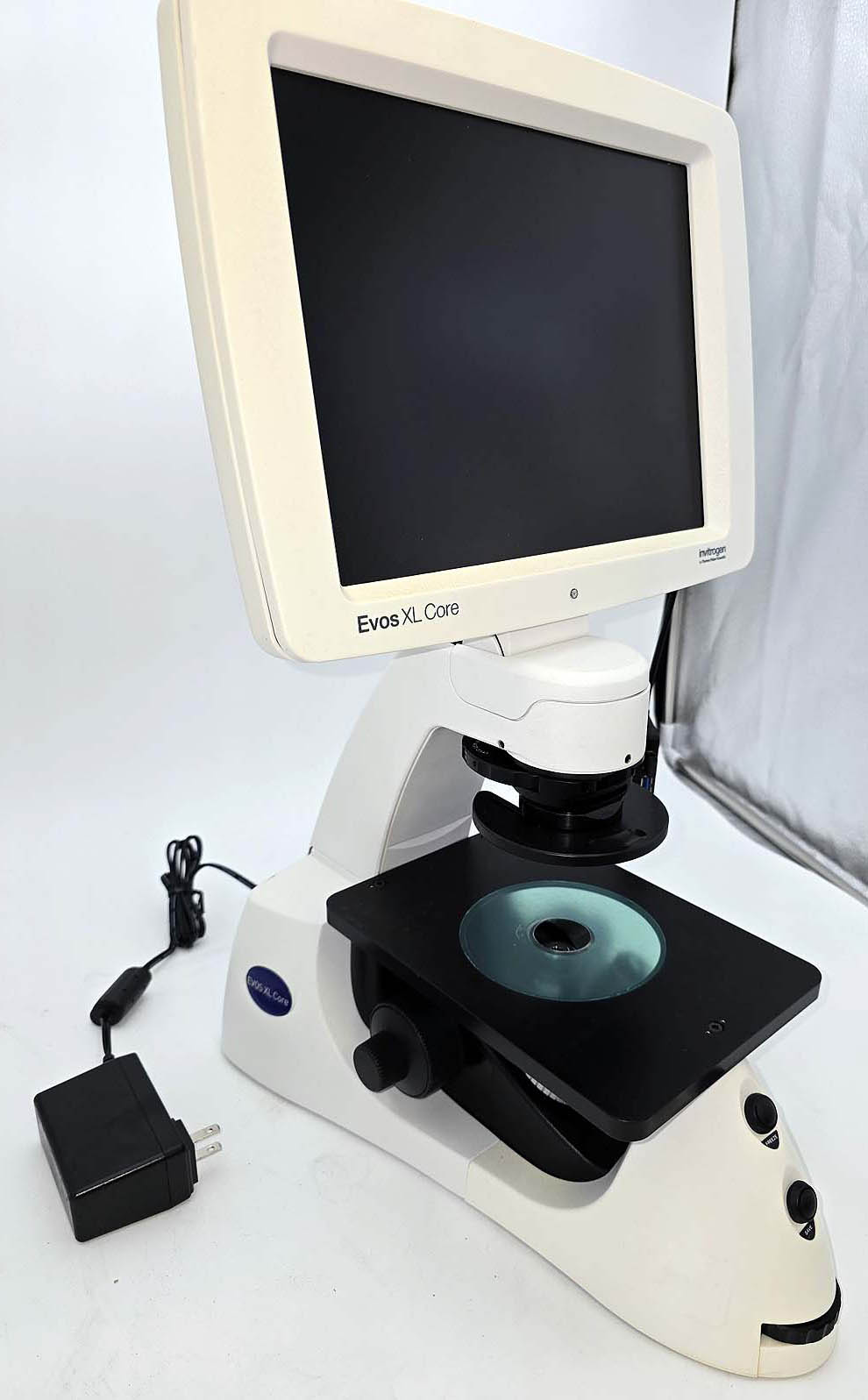

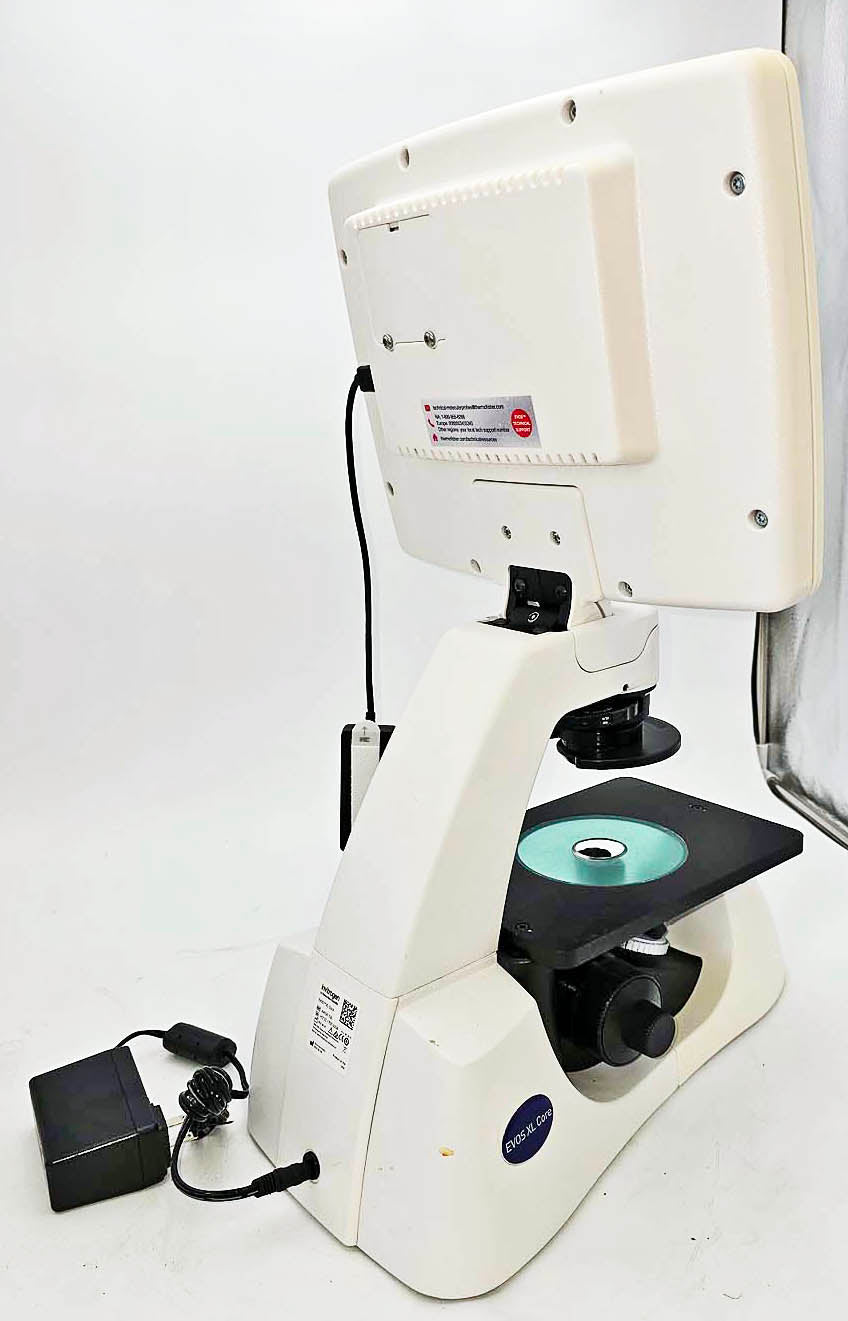

Invitrogen EVOS XL Core inverted microscope Imaging System
Manufacturer: Invitrogen
Model: EVOS XL Core
Condition: Excellent. Fully functional
Status: Used
Estimated lead time: 1 week typically
Includes:
- EVOS XL Core inverted microscope
- USB flash drive
- Power adapter and power cord
- Operations manual (pdf copy)
- Power cord and USB cable
Specifications:
| Model |
EVOS XL Core |
| Contrast Methods |
Transmitted Light (Brightfield and Phase Contrast) |

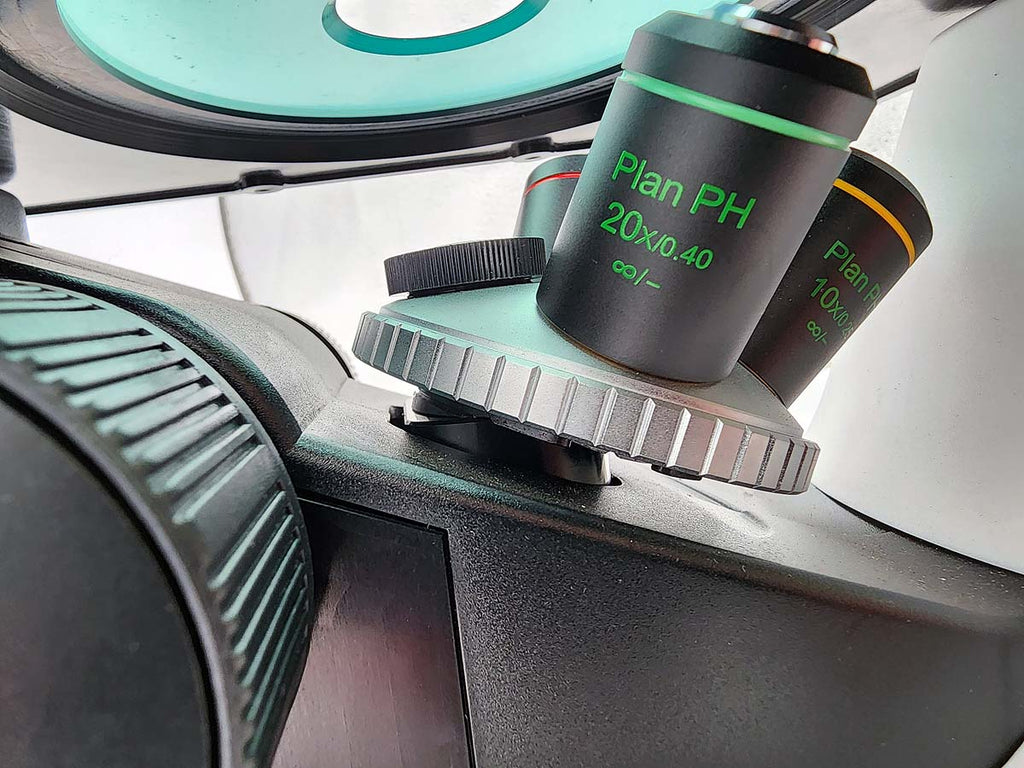

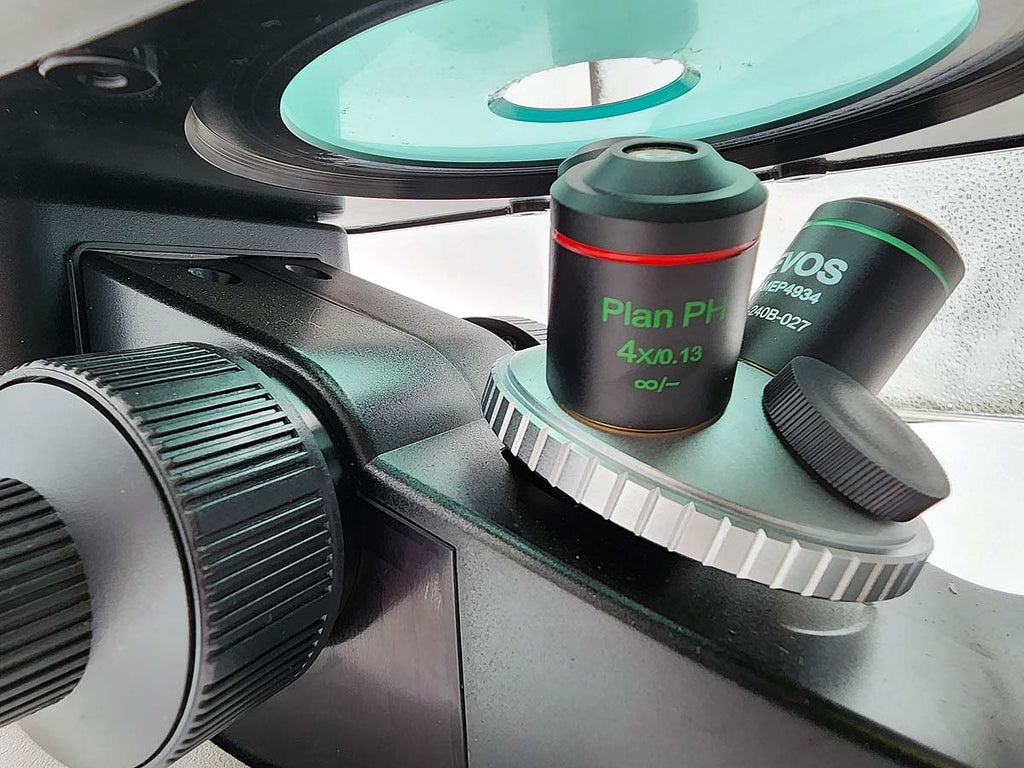

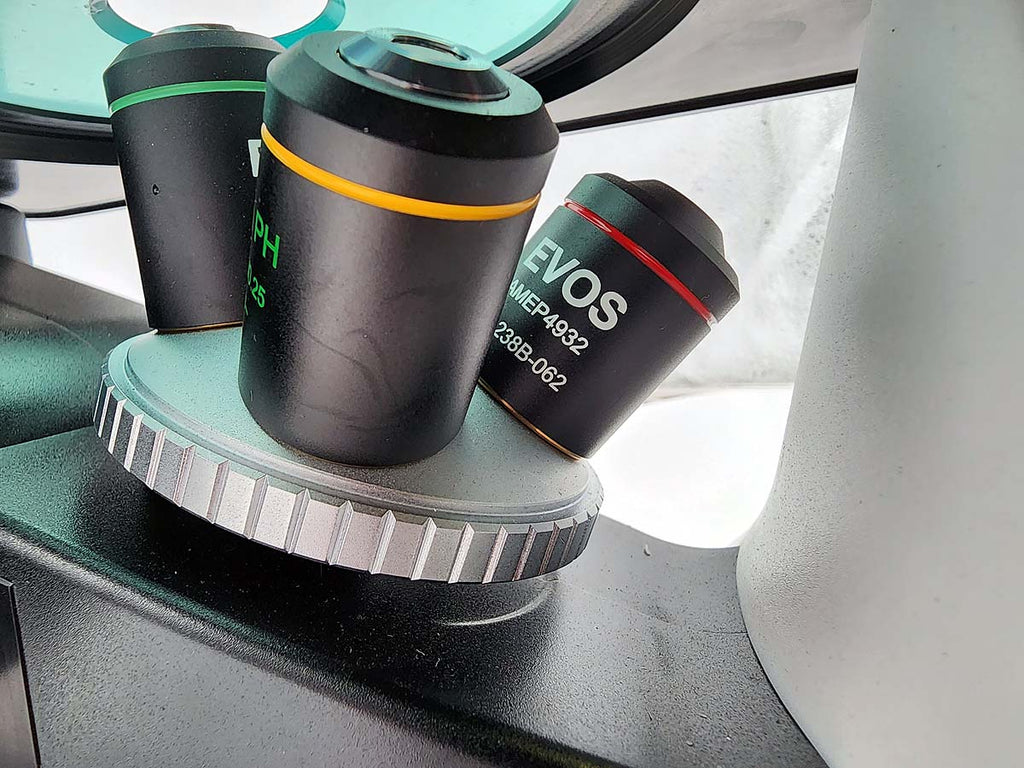

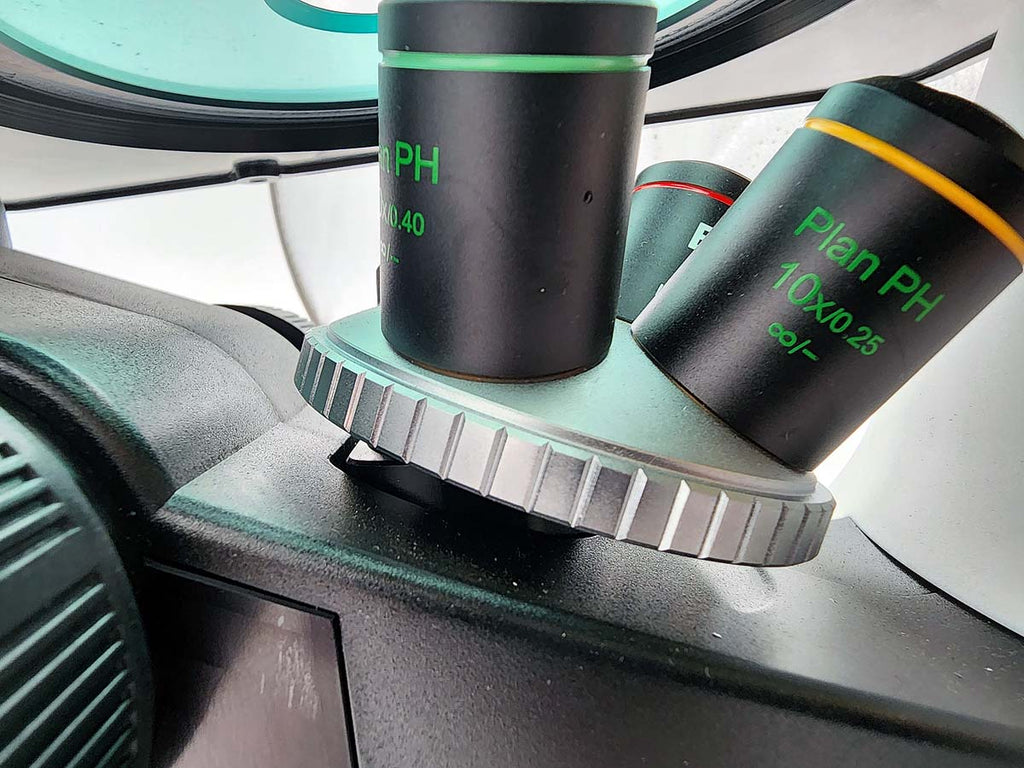

| Objectives |
Plan PH 4X/0.13
Plan PH 10X/0.25
Plan PH 20X/0.40
|
| Nosepiece |
4 position turret |
| Phase Contrast |
Slider |
| Standard contrast technique
|
Brightfield, phase contrast |
| Transmitted illumination |
LED with intensity control |
| Stage |
Plain stage |
| Optical system |
Infinity Corrected Optical System |
| Condenser |
Working Distance 60mm |
| Resolution |
1024 x 768 pixels
|
| Display |
Adjustable tilt, 12" color |
| Data outputs |
JPG, PNG, BMP, and TIFF files |
| Exterior Dimensions
|
13"W x 16"D x 21"H
|
| Shipping weight |
30 lbs |
| Electrical |
100-240V, 50/60Hz |
The EVOS XL Core Imaging System is a digital, transmitted light, inverted imaging system for cell and tissue culture applications and routine cell maintenance. Its color camera and high-quality optical system deliver high-definition images with exceptional ease. With a small footprint and an ergonomic design, the all-in-one EVOS XL system is ideal for basic imaging needs and a perfect addition to any cell culture room or facility.
The EVOS XL Core Imaging System offers you these important advantages:
- Easy installation; no maintenance, assembly, alignment, or calibration
- Configured for four objectives
- Fits and operates inside a cell culture hood
- All-in-one design: digital camera, precision optics, LCD display, and USB storage
The EVOS XL Core system is an integrated transmitted-light inverted imaging system that combines high-quality optics, a 12.1' high-resolution LCD display, and a digital color camera. Images are seamlessly acquired through the user interface using a mouse and the integrated software that includes a variety of features, such as color temperature control. All images can be saved onto the USB device in JPEG, BMP, or TIFF formats. Applications suited for the EVOS XL Core system include basic imaging of live and fixed cells, tissue culture determinations (confluence, density, and growth), stem cell isolation, and analysis of stained tissue slices.

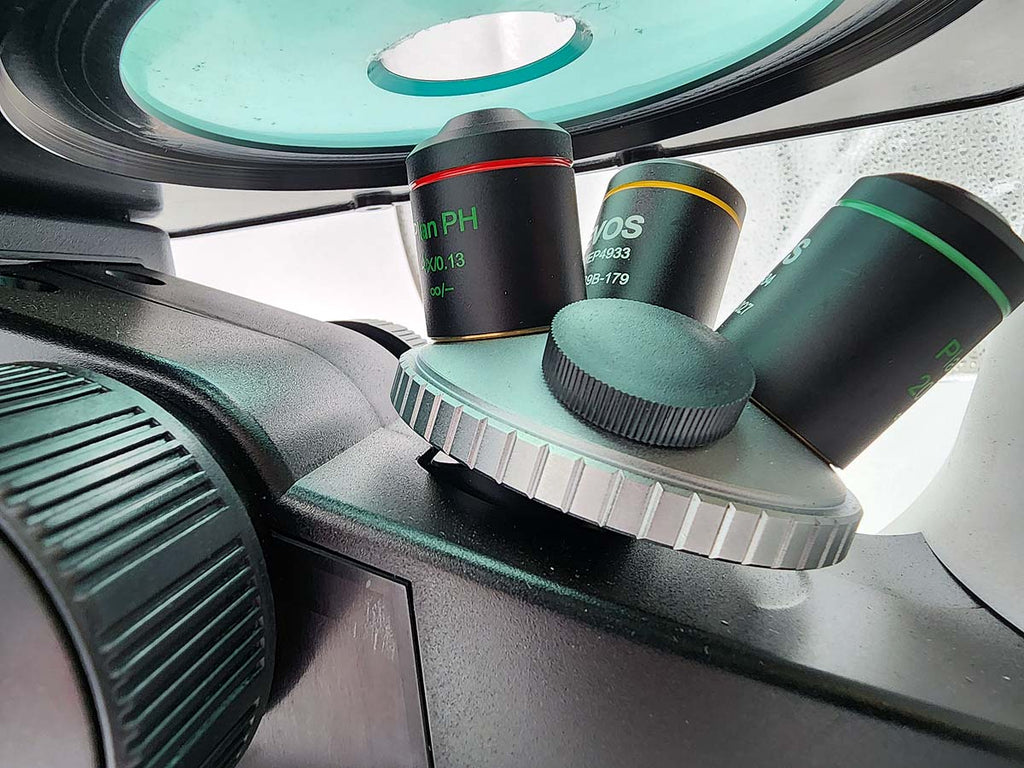

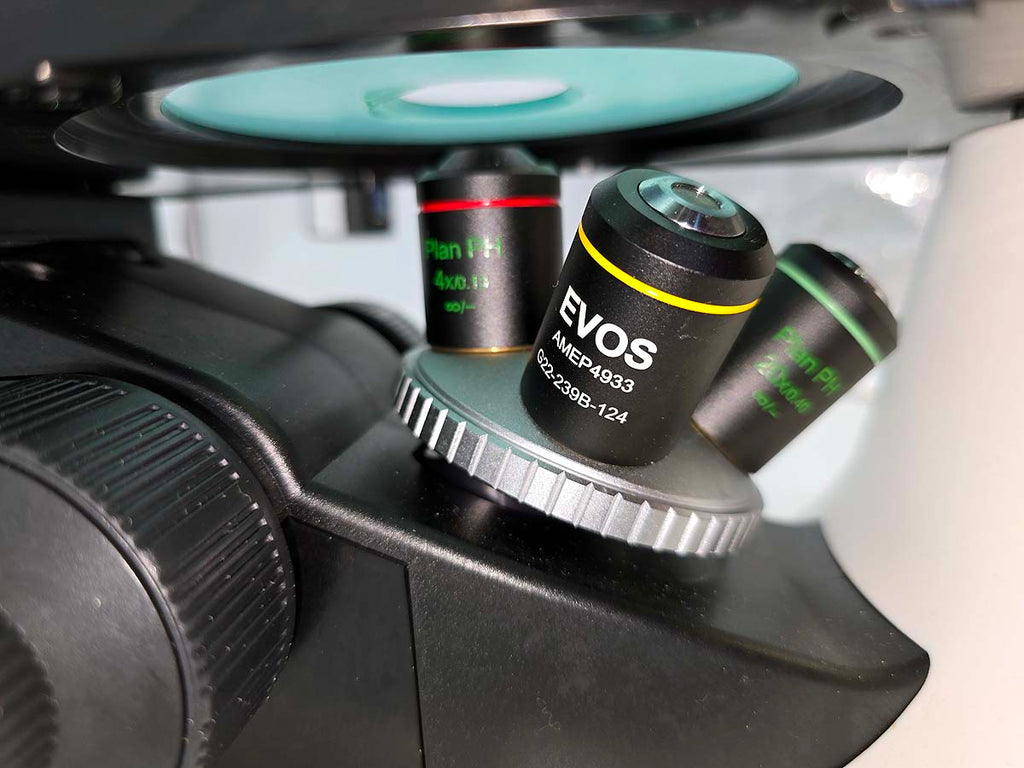

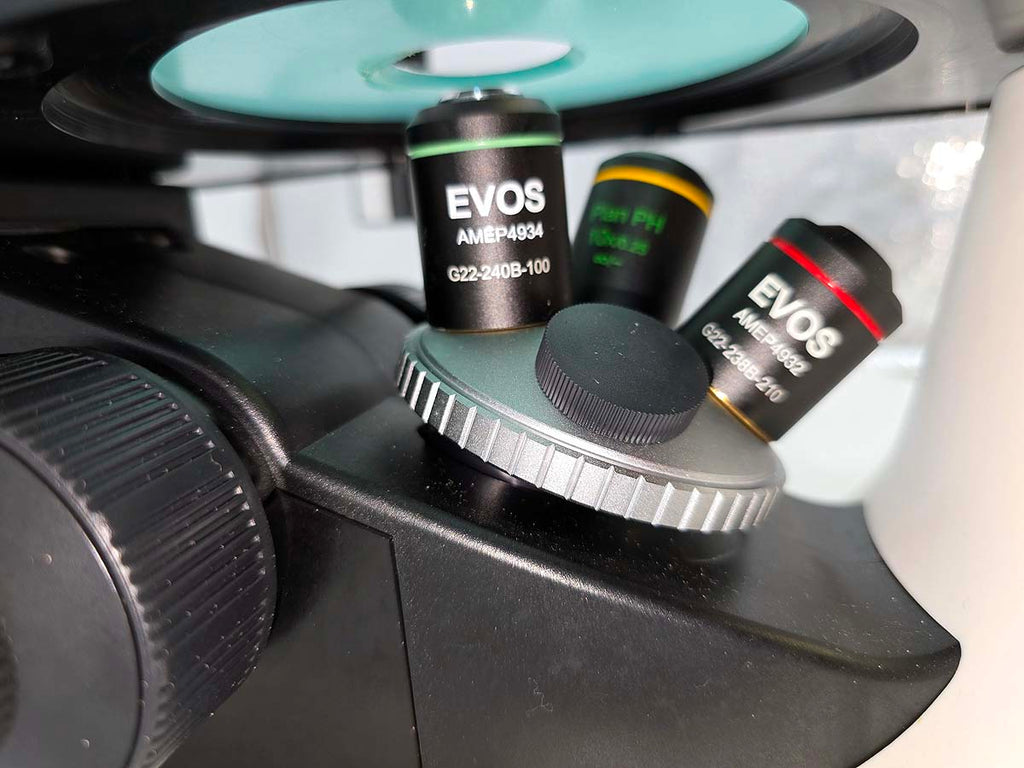

The four-position objective turret can be configured to best meet your needs using our full range of long working distance (LWD) and coverslip-corrected objectives. LWD objectives are available from 4x to 40x, and our 2x objective allows viewing of the entire well of a 96-well plate. The compact footprint makes it easy to use the EVOS XL Core system wherever needed; the entire system can be easily moved into a cell culture hood or glove box. The EVOS XL Core system is designed with a universal stage that provides maximum flexibility for slides, culture dishes, and flasks.
The EVOS XL Core Imaging System is plug-and-play. In addition to an exceptionally easy set-up and installation, it requires no warm-up or cool-down periods. The LED light source offers exceptional stability and durability—turn the unit on and off whenever you need to image a sample. The LED bulbs are rated for >50,000 hours (∼17 years) of life, compared to 300 hours for a typical mercury bulb and 1,500 hours for a metal halide bulb. The long life and low energy consumption translate into significantly lower operating costs compared to instruments with conventional light sources. Finally, the advanced ergonomic design of the EVOS systems removes the strain associated with conventional microscopes, enables shared viewing, and makes moving the units easy.
Documentation
EVOS XL Core Imaging System brochure
Quick Reference: EVOS XL Core
User Guide: EVOS XL Core
