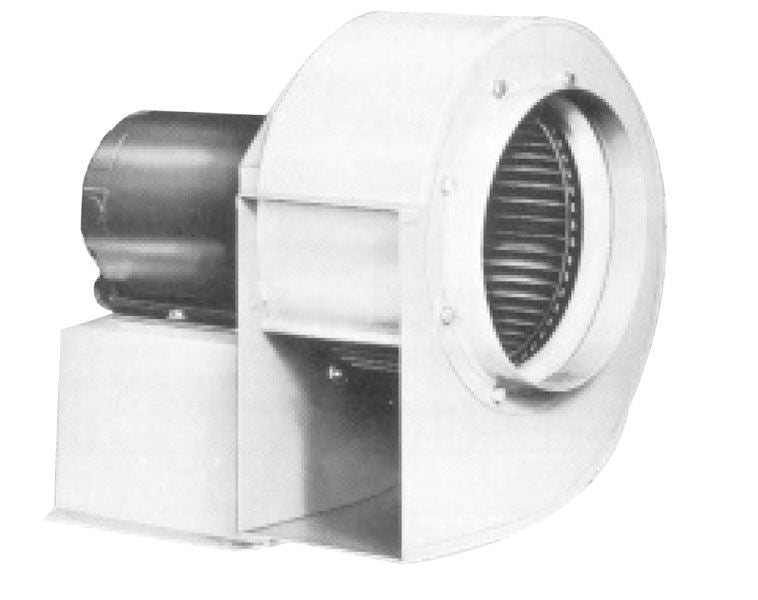

Forward Curved Model FC111 1/2HP Roof Mount Exhaust Blower with Drain Fitting, Weather Covering, and spring rail mounts
Manufacturer: CB
Model: FC111 1/2HP
Condition: New. Ships directly from the manufacturer.
Estimated lead time: Typically ships in 4-5 weeks from order and payment.
Warranty: CB warrants that each blower manufactured by the Company shall be free from defects in material and workmanship under normal use and service for a period eighteen (18) months from the date of shipment or twelve (12) months from date of original installation, “whichever occurs first.”
Includes:
- FC111 forward curve blower 1/2HP
- Motor and drives installed
- Drain Fitting
- Weather Cover
- Spring Rail Mounts
Customer is responsible for roof mount installation and ductwork connections.
Features:
-
Superior Quality for your laboratory exhaust requirements.
-
Airstream Integrity isolated from fan exterior and motor housing compartment.
-
Airtight inlet and discharge connections.
-
Shaft Seals contain corrosive and/or hazardous fumes.
-
Steel Wheels are standard. Spark-resistant AMCA "B" aluminum wheels or corrosion resistant stainless steel wheels are available when required.
-
Special Coatings available:
1. Epoxy for mild corrosive fumes and temperatures below 180º F.
2. Cen-FP (fluoropolymer) for severe corrosive fumes such as nitric, sulfuric or perchloric acids.
-
Wheels are balanced after coating
-
Belt Driven fans are AMCA licensed for air performance.
-
All fasteners in airstream are stainless steel.
Recommended CFM 100 through 1000 CFM
Specifications
- Standard air flow (100 fpm)
- FC 111-1/2HP Forward curved exhaust blower, 10 inch dia wheel
- Air moving capacity: 1170cfm @100fpm
- Motor: 110V/220V Capacitor Start ODP
- Wheel Diameter: 9 1/8" X 4 5/8"
- Rated for up to two 90 degree elbows
Exhaust Blower Options:
-
Enhanced air flow (150 fpm)-Net add $152.40
- FC112-1/2HP Forward curved exhaust blower, 12 inch dia wheel
- Air moving capacity: 1375cfm @150fpm
- Motor: 110V/220V Capacitor Start ODP
- Epoxy coated fan blade housing to reduce corrosion from most normal exhausts [not recommended for temperatures over 180F.-$414
- Explosion-proof motor - $550 (spark-resistant aluminum fan blade is additional and required with this)
- Spark-resistant aluminum fan blade -$180
- Vent stack-Request quote
- Inlet and outlet protective screens-Contact us for quote
- Cen-FP, a fluoropolymer resin coating especially resistant to highly corrosive chemicals such as nitric and sulfuric acids. Withstands a wide range of temperatures. -$1,242
