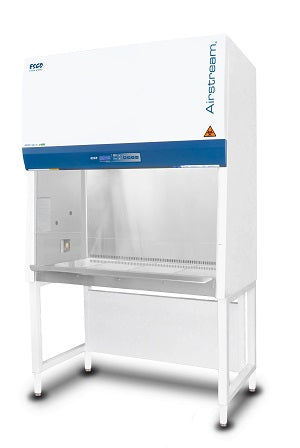

Esco Airstream Model AC2-6S9-NS-Port-AF Class II Type A2 6ft Biological Safety Cabinet with Filter, UV Light, and Stand
Manufacturer: Esco
Model: AC2-6S9-NS-Port-AF
Condition: New. Ships directly from the manufacturer.
Estimated lead time: As of 6/26/23, currently out of stock. ships in 14-16 weeks from order and payment. Contact us for updated availability.
Warranty: Esco Biosafety Cabinets come with a limited five (5) year warranty, unless otherwise stated, which includes parts and labor. Esco's limited warranty covers defects in materials and workmanship. Esco's liability under this limited warranty shall be, at our option, to repair or replace any defective parts of the equipment, provided that these parts, if proven to the satisfaction of Esco, were defective at the time of being sold and that all defective parts shall be returned, properly identified with a Return Authorization.
Includes:
- Esco Airstream Model AC2-6S9-NS 6ft biosafety cabinet (assembled)
- Microprocessor controller
- Cable Port
- Airflow Sensor
- Ulpa Filter
- UV Fixture and Lamp
- Esco Model STL-6AO 6ft Stand, adjustable height with pins from 26" to 36", work surface 28" to 38", Leveling Feet, Shipped flat and disassembled.
Specifications
| Technical Specifications |
| Model (110-130VAC 50/60Hz) |
AC2-6S9-NS
2010925
|
| External Dimensions (W x D x H) mm |
1950 x 753 x 1400 mm
(76.8” x 29.6” x 55.1”)
|
| Gross Internal Dimensions (W x D x H) mm |
1830 x 580 x 660 mm
(72” x 22.8” x 26”)
|
| Usable Work Area |
0.86 m2 (9.3 ft2 ) |
| Tested Opening |
203 mm (8”) |
| Average Inflow Velocity |
0.53 m/s (105 fpm) |
| Average Downflow Velocity |
0.30 m/s (60 fpm) |
| Airflow Volume: |
|
| Inflow |
709 cmh (417 cfm) |
| Downflow |
1107 cmh (652 cfm) |
| Exhaust |
709 cmh (417 cfm) |
| Required Exhaust With Optional Thimble Exhaust Collar |
1064 cmh (626 cfm) |
Static Pressure For
Optional Thimble Exhaust
Collar |
68 Pa / 0.27 in H2 O |
| HEPA/ULPA Filter Typical Efficiency |
>99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA |
|
>99.999% at MPPS, H14 as per EN 1822 EU |
|
>99.999% at 0.3 micron size particle by PAO test (filter leakage test according to NSF49) |
| Net Weight** |
346 Kg (763 lbs) |
| Shipping Weight** |
428 Kg (944 lbs) |
| Shipping Dimensions* |
2050 x 820 x 1760 mm
(80” x 32” x 69”)
|
Documents/Videos
Esco Airstream Class II Biosafety Cabinets Brochure
How to Install Esco Support Stand - Part 01
How to Install Esco Support Stand - Part 02
Accessories
- Cable port
- Stand with casters
- hydraulic stand
- Lab chairs
Contact us for accessories pricing and availability
