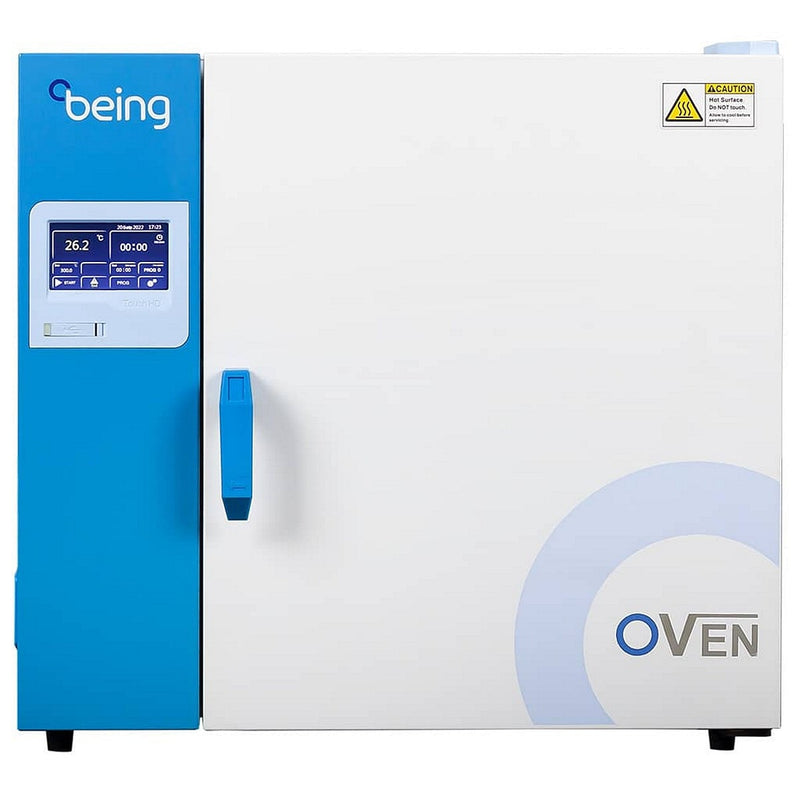

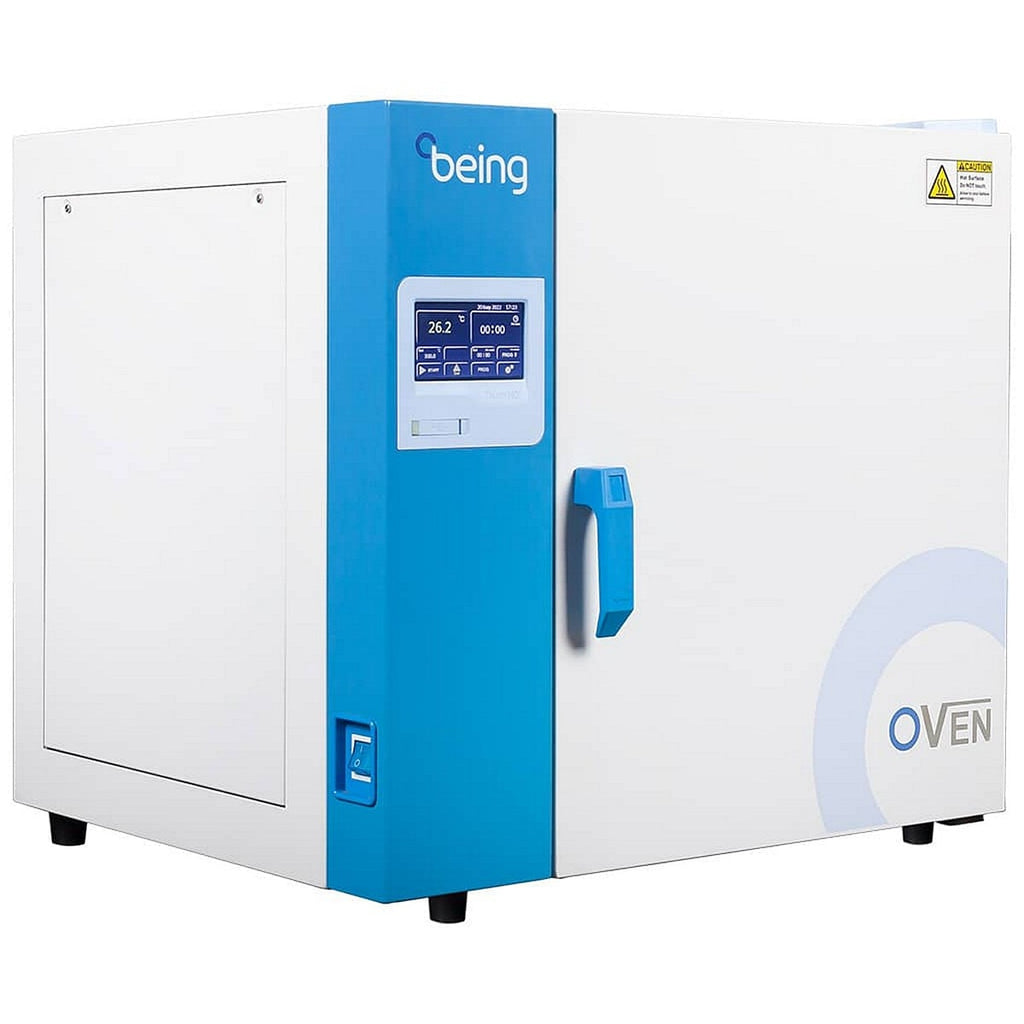

BEING BON-115T Natural Convection Drying Oven, 4.1 Cu. ft., 115 Liters, 120V/60Hz
Manufacturer: BEING Instrument
Model: BON-115T
Condition: New. Ships from manufacturer/supplier in California.
Estimated lead time: If in stock, typically ships in 2-5 business days. If out of stock, ships in 12 weeks. Contact us for updates.
Warranty: 2 year manufacturer's warranty (Parts and Labor)
Natural convection oven is the same as a gravity convection oven
Performance and Features
-
Temperature Range:Amb+10°C - 300°C .
-

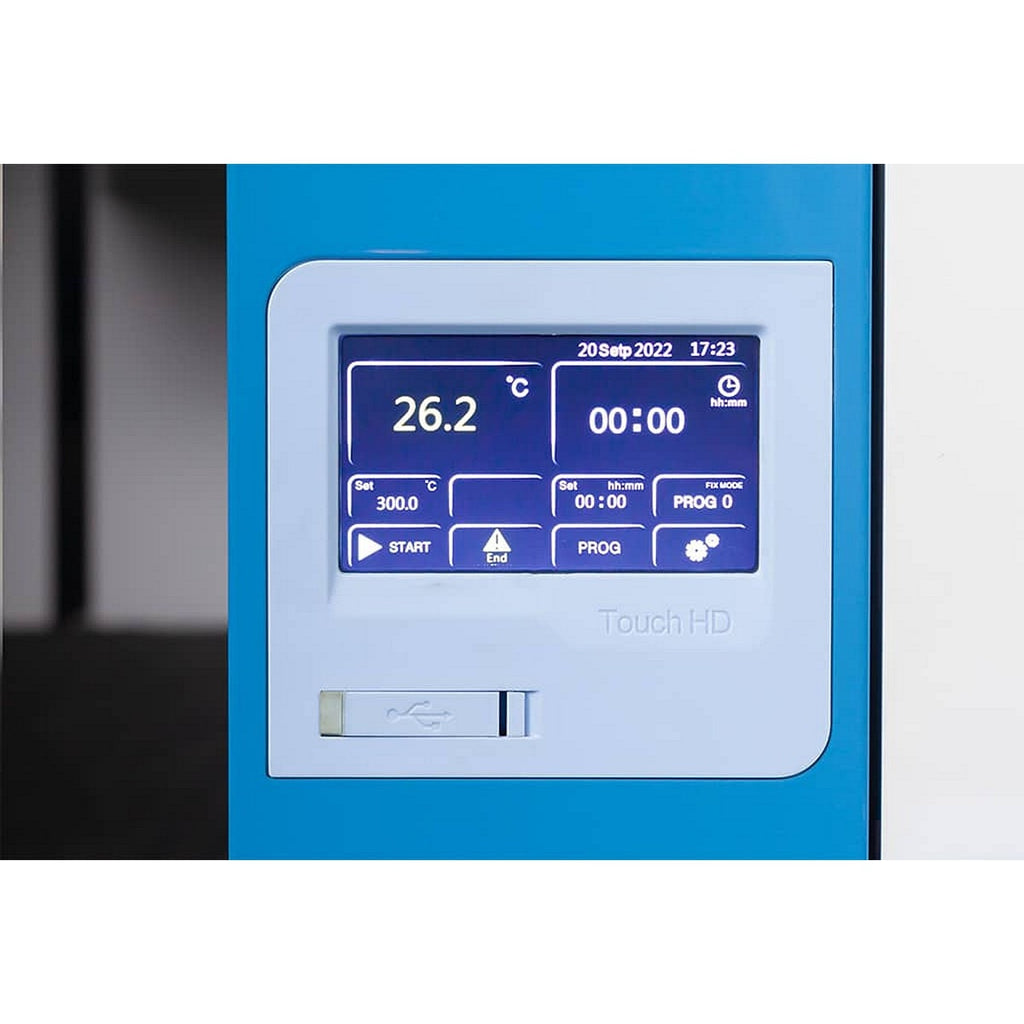

P.I.D temperature controller provides accurate and reliable temperature control.
-
Natural convection heating allows the sample temperature to be uniform, suitable for sterilization, powder drying and high temperature storage.
-
Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
-
L series' (BON-115L) temperature range is from Amb+10℃ - 250 ℃.
Convenience
-
Inner chamber is made from corrosion-resistant mirror stainless steel.
-
Round curved inner angle is easy to clean.
-
Anti-skid shelf design, easy to operate by single hand.
Safety & Peace of Mind
-
Auto Start Feature after power loss/return.
-
Temperature deviation alarm.
-
Over temperature set point alarm.
-
Over current protection.
-
Independent overtemperature limit controller for added safety.
Specifications
|
Internal Volume
|
4.1 cu ft (115 liters)
|
|
Temperature Range
|
Ambient+18℉ - 572℉
Ambient+10℃ - 300℃
|
|
Temperature Stability
|
±0.5℃
|
|
Display Resolution
|
0.1
|
|
Uniformity at 100℃
|
±3.0
|
|
Heated to 100℃
|
40 mins
|
|
Maximum # of Shelves
|
10
|
|
# of Shelves
|
2
|
|
Max. Load per Shelf
|
20Kg
|
|
Internal Dimension (WxHxD)
|
20.5×19.4×17.7 (inch)
520×495×450 (mm)
|
|
External Dimension (WxHxD)
|
31.9×29.7×23.2 (inch)
810×755×590 (mm)
|
|
Net Weight
|
74Kg
|
|
Timer
|
1~5999mins
|
|
Electrical Requirement
|
120V 60Hz
|
|
Power Consumption
|
1800W
|
|
Heating Rate to 100℃
|
40 mins
|
|
Cat. No.
|
BO211120U
|
|
Warranty
|
2 years
|
|
Certification
|
CSA
|
