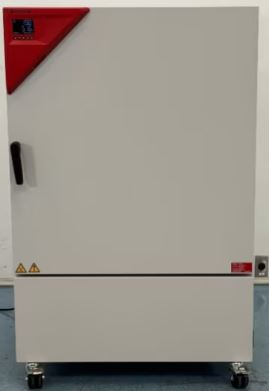

Binder KBF-S ECO 240 Oven 8.7 cu. ft.
Manufacturer: Binder
Model: KBF-S ECO 240
Status: New condition. Unused. Ready to ship
Condition: Excellent
Warranty: 30 day warranty
Estimated lead time: 1 week
Benefits
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Humidification with fast response times
- Wide humidity range up to 98 % RH
- Long-term stress testing, e.g. at 85 °C / 85 % RH
Features
- Temperature range: -10 °C to 100 °C
- Humidity range: 10 % RH to 98 % RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Inner chamber made of stainless steel
- BINDER Multi Management Software APT-COM™ Basic Edition
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- 1 stainless steel rack
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
- Dimensions: LxWxH 38.58" x 42.13" x 67.72"
- Gross weight: 489 lbs.
Specifications
| Order number |
9020-0344 |
9020-0343 |
| Performance Data Temperature |
| Average cooling down time according to IEC 60068-3-5 [K/min] |
0.4 |
0.4 |
| Average heating-up rate according to IEC 60068-3-5 [K/min] |
0.8 |
0.8 |
| Max. heat compensation at 25 °C [W] |
200 |
200 |
| Temperature range [°C] |
-10…100 |
-10…100 |
| Performance Data Climate |
| Dew point temperature range [°C] |
5…90 |
5…90 |
| Humidity fluctuation depending on setpoint |
≤2 ± % RH |
≤2 ± % RH |
| Humidity range [% RH] |
10…98 |
10…98 |
| Temperature fluctuation depending on setpoint [± K] |
0.1…0.3 |
0.1…0.3 |
| Temperature range [°C] |
10…90 |
10…90 |
| Temperature variation depending on setpoint [± K] |
0.1…1 |
0.1…1 |
| Electrical data |
| Nominal power [kW] |
2.1 |
2.1 |
| Phase (Nominal voltage) |
1~ |
1~ |
| Power frequency [Hz] |
50/60 |
50/60 |
| Rated Voltage [V] |
120V |
200…230 |
| Unit fuse [A] |
16 |
16 |
| Doors |
| Inner doors |
1 |
1 |
| Unit doors |
1 |
1 |
| Internal Dimensions |
| Depth [in] |
19.11 |
19.11 |
| Height [in] |
30.93 |
30.93 |
| Width [in] |
25.61 |
25.61 |
| Measures |
| Interior volume [cu.ft.] |
8.7 |
8.7 |
| Load per rack [lbs] |
66 |
66 |
| Net weight of the unit (empty) [lbs] |
395 |
395 |
| permitted load [lbs] |
220 |
220 |
| Outer dimensions |
| Depth net [in] |
31.52 |
31.52 |
| Height net [in] |
57.7 |
57.7 |
| Wall clearance back [in] |
3.94 |
3.94 |
| Wall clearance sidewise [in] |
3.94 |
3.94 |
| Width net [in] |
36.64 |
36.64 |
| Environment-specific data |
| Energy consumption at 85 °C and 85 % RH [Wh/h] |
570 |
570 |
| Sound-pressure level [dB(A)] |
52 |
52 |
| Fixtures |
| Number of shelves (std./max.) |
1/9 |
1/9 |
