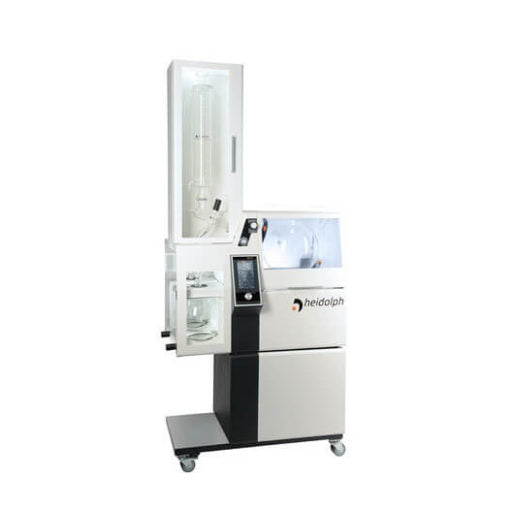

Heidolph 20L rotary evaporator system with 3ph VC5000 chiller
Manufacturer: Heidolph
Model: 20L
Condition: New. Ships directly from the manufacturer
Warranty: 3 year manufacturer warranty and on-site expert installation and training
Estimated lead time: If in stock, it will ship in 15 business days from acceptance of order. If out of stock, it will ship in 6-8 weeks after acceptance of order. Please contact us for availability.

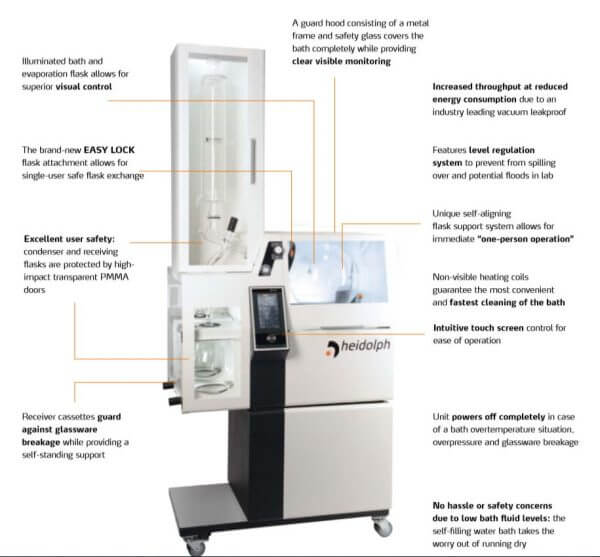

This Heidolph 20L Industrial Package Includes:
Hei-VAP Industrial Bath (036072402)
- Heating Bath Volume – 24L Water, 22L Oil
- Heating Bath Temp Range – 20°C to +180°C

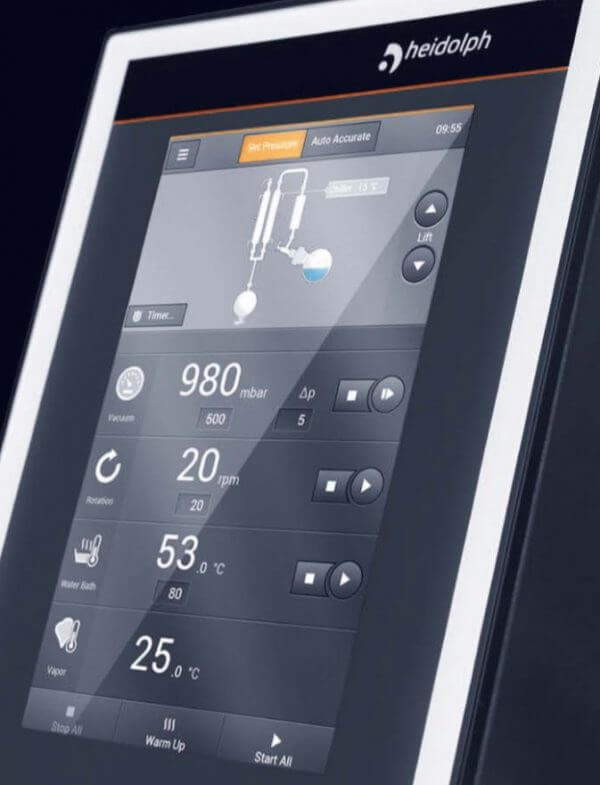

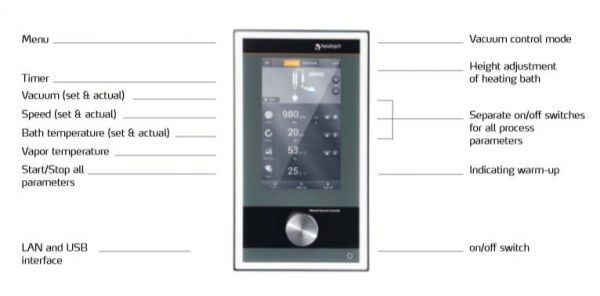

- Large touch screen control panel with illuminated displays for all process parameters, programmable ramps
- Receiver cassettes and additional PMMA door housing protect against threat of glassware breakage
- Integrated refill water system, spillover prevention and a release valve on the bottom
- High-impact, transparent PMMA door
- Non-fogging safety glass and metal frame guard hood for operator protection
- Illuminated evaporation flask for increased visibility
- Universal heating bath accommodates water or other fluids

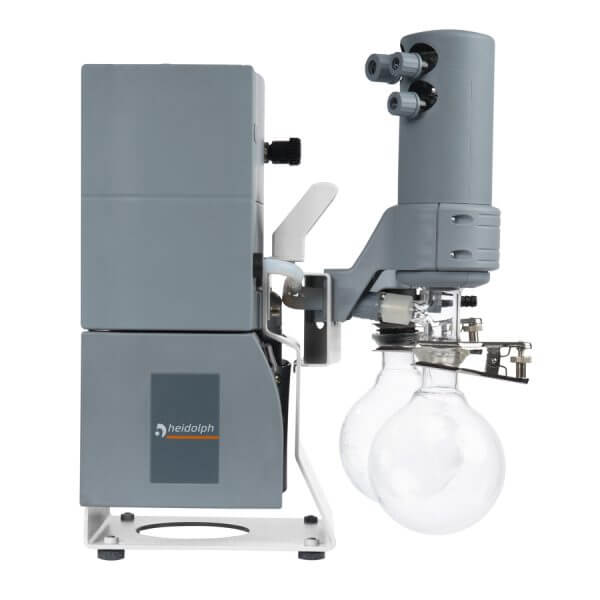

Vacuum Pump – RotaVac 036304775
Valve Vacuum Control – Less babysitting, more efficient recovery, vacuum pump preservation
This system’s vacuum control is a solenoid valve cycling between optimal vacuum set points. Vacuum control allows for “walk away” distillation, rather than having a dedicated person controlling the vacuum.
This vacuum pump has an ultimate vacuum of 2mbar (1.5torr) and suction of 50L per min.

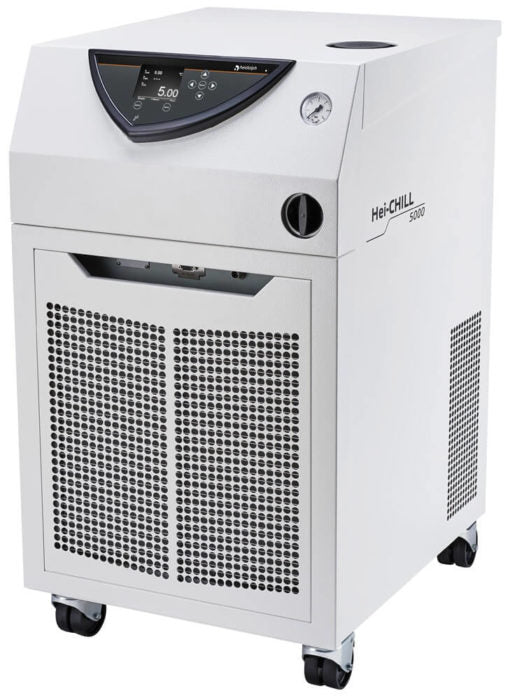

Hei-Chill5 Chiller 050000105
This package utilizes Heidolph’s most powerful chiller. Undersized or inefficient chillers can be a weak link in rotary evaporation or vacuum distillation performance. On less expensive models, be sure to compare performance data of the included chiller. The HeiChill5 Chiller is made in Germany and has a cooling capacity of 1700 watts at -10°C. Includes water glycol fluid and connections. It will require a dedicated 220V / 3ph / 15A circuit.

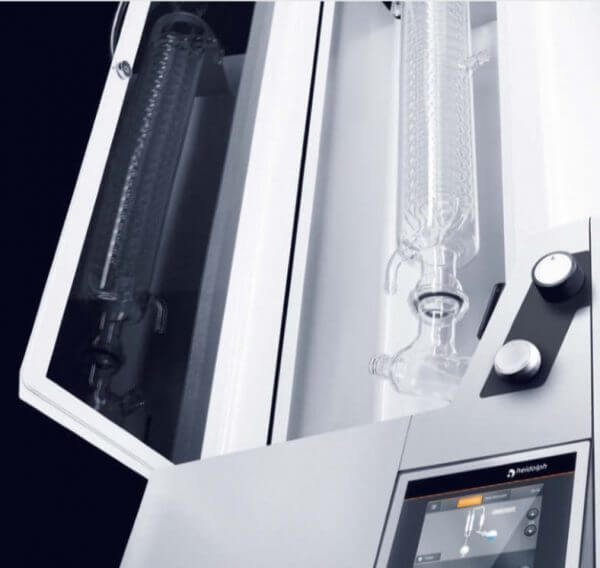

Quality Glassware From Germany – Largest Condensing Surface With A1C Configuration
Thin, unbalanced glass can easily break, contributing to on-going maintenance and consumables costs. Heidolph’s glass is high quality lab-grade glass manufactured in Germany. This complete system includes Heidolph’s A1C Glassware – ideal for highest recovery rates & low boiling solvents.
- 1 each ascending condenser
- 1 each descending condenser
- 1 each 20 Liter evaporating flask
- 2 each 10 liter receiving flasks
Rotary evaporators are systems made up of key components (glass surface area, vacuum pump, vacuum control, chiller) that can make or break overall system performance and rates of evaporation and recovery.
All rotary evaporators are not created equal. Many resellers or low-cost importers will include under-performing chillers, loose or non-existent vacuum control, thin glass and lesser vacuum pumps that may lower the initial price tag, but end up costing the customer plenty in on-going maintenance, inefficient evaporation times and lost man hours tuning the systems.
Vacuum control is a key component for efficient rotary evaporation. Vacuum control allows for “walk away” distillation, rather than having a person dedicated to controlling vacuum. When vacuum levels are manually controlled but not consistently monitored, the vacuum pump can be quickly destroyed and solvent recovery is much less efficient.
Rotary evaporators also have motors that spin the flasks. Less expensive motors can run hot and overheat. When this happens, processing must stop until the motor cools down. Thin, unbalanced glass can easily break, contributing to consumables costs.
The Heidolph Difference
Heidolph offers a best in class, 3 year warranty and on-site expert installation and training. Expect this investment to have a performance life of 10-15 years and low cost of ownership.
Protect Expensive Product. A temperature sensor powers off the bath in case of any uncontrolled heat-up event.
Work Smarter, More Effectively. Minimize Supervision Time.
The unique integrated evaporating flask support system allows for “one person operation” to remove the flask in just moments.
The automatic water bath refill system along with an additional control panel for filling and electronics allow for use over an extended period of time and eliminates with worry of running dry.
The secondary 10L recovery flask allows drainage without breaking vacuum. This is a tremendous time savings in the process of rotary evaporation.
Want continuous, unattended evaporation 24/7?
Add Heidolph’s Distimatic Control Module to this system.
Heidolph Safety Features
- All condenser and receiving flasks are protected by transparent, high impact PMMA doors.
- A non-fogging guard hood protects the bath completely, but still allows for visible monitoring.
- A temperature sensor powers off the bath in case of any uncontrolled heat-up event.
NRTL & ISO Certified. UL Listed. Quality German Engineering & Construction
Heidolph rotary evaporators UL Listed. This certification is a requirement by many municipalities. Heidolph’s manufacturing facility is also certified to ISO Certificate 9001:2015
Certificate Number 2016-12-21-E486210
- UL 61010-1 2nd Edition, 2013-07
- CAN/CSA-C22.2 No. 61010-1 2nd Edition 2008 -10
- IEC 61010-2-010:2003(ed.2) Part 2-010; Particular requirements for laboratory equipment for heating materials
- CAN/CSA-C22.2 No. 61010-2-010-04 Part 2-010 Particular requirement for laboratory equipment for heating material
Specifications
Solvent recovery rate
|
13 L/hour |
Heating bath
|
24 Liters Water 22 Liters Oil
Temp Range: 20C to 180C
38″L x 27″W x85″H Base + Safety Cabinet
220V / 1ph / 60Hz / 20A (Plug Not Supplied)
|
Mobile base cart
|
48″L x 35W x 35D” Universal on all Hei-VAP Industrial Models
|
Vacuum pump
RotaVac
|
Ultimate Vacuum: 2mbar (1.5torr)
Suction: 50L per min
13.7″L x 10.8″W x 19.5″H
120V / 1ph / 60Hz Cord/Plug Included
Includes:
- Vacuum valve
- Vacuum sensor
- Vapor temperature sensor
|
Chiller
HEI-Chill3
|
Max Water Pressure: 46.41 psi
Cooling Capacity: 1700W at -10°C
22.5″L x 25.5″W x 38″H
220V / 3ph / 15A Includes 2 buck boost transformers Hardwired. No Plug.
Includes:
- (2) each 20L water glycol fluid (050000110)
- (2) each 1/2 bar adapters w/ 3/4 screw cap
- (3) each cooling water tubes
- (4) each tube clamps
|
Glassware A1C |
Ascending Condenser Descending Condenser (2) each 10 Liter Receiving Flasks (1) each 20 Liter Evaporating Flask
|
Tube set
|
Includes All tubing required OD – 13mm ID – 8mm 16 meters long 18 Hose Clamps |
|
UL listed |
